A true RMS power meter for permanent installation on single or three-phase systems from 100–600 VAC. Measures voltage, current, real power, cos(phi), and additional electrical parameters across all three phases via RS485 Modbus RTU. When combined with a VPFlowScope flow meter, enables real-time compressor efficiency monitoring.
Monitoring energy usage is a powerful tool and key to maximizing savings across your facility. Energy consumption data provides insight for accurate cost allocation and identifies areas to lower consumption and increase performance. Complete power metering solutions let you keep a close eye on all your energy consumers circuit by circuit — compressed air systems, vacuum systems, HVAC, cooling water stations, lighting, and more.

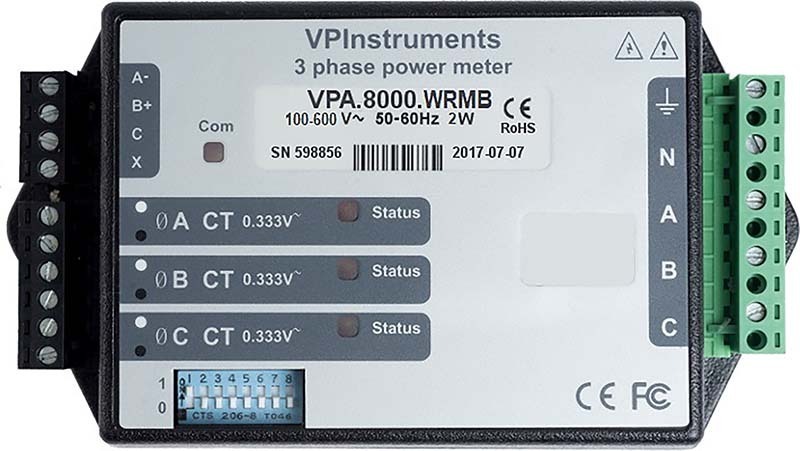

The VPInstruments 3 Phase Power Meter measures voltage and current across all three phases, providing power, voltage, current, cos(phi), and many additional electrical parameters via RS485 Modbus RTU. The Modbus interface allows easy connection to any monitoring system, and when combined with one or more flow meters, enables real-time compressor efficiency monitoring.
Unlike current-only loggers, the 3 Phase Power Meter measures both voltage and current for each phase, delivering high-accuracy true power consumption data. It is recommended for permanent installations where measurement accuracy and continuous monitoring are required.
Highlights
- True RMS power measurement — single phase or three phase
- One model covers all nominal voltages 100–600 VAC, 50/60 Hz
- Wye and delta configurations in one unit
- RS485 Modbus RTU output — connects directly to VPVision or any BMS/SCADA
- 0.3333 VAC input for current transformers (CT) — compatible with VPInstruments CTs or any standard 0.3333 VAC output CT
- LED indicators for CT status and serial communication
- Fully configurable via Modbus
- Self-powered from measured voltage (<2W) — no separate power supply required
- For permanent installation
- 1 Year Warranty
- Power measurements combined with flow measurements revealed compressor efficiency ranging 7–8 kWh/m³/min versus a possible 6.18 kWh/m³/min — identifying a 15% savings potential.
Technical Specifications
Parameter | Specification |
Accuracy | ±0.5% of reading |
Power Supply | Self-powered from measured voltage, <2W |
Voltage Input | 100–600 VAC (L to N), 100–600 VAC (L to L) |
Current Input | 5–1500 Amps per phase (via CT) |
Output | RS485 Modbus RTU, 2-wire |
Dimensions | 153 × 85 × 38 mm / 6.02 × 3.35 × 1.50" |
Weight | 307–314g / 10.8–11.1 oz |
Environment | Indoor use |
Operating Temperature | -30 – 55°C / -22 – 131°F |
Operating Humidity | 5–90% RH, non-condensing |
Operating Frequencies | 50 / 60 Hz |
Ordering Information
Order Code | Description |
VPA.8000.WRMB | 3 Phase Power Meter — Wide Range Modbus, 100–600V, Delta/Wye, 50/60Hz |

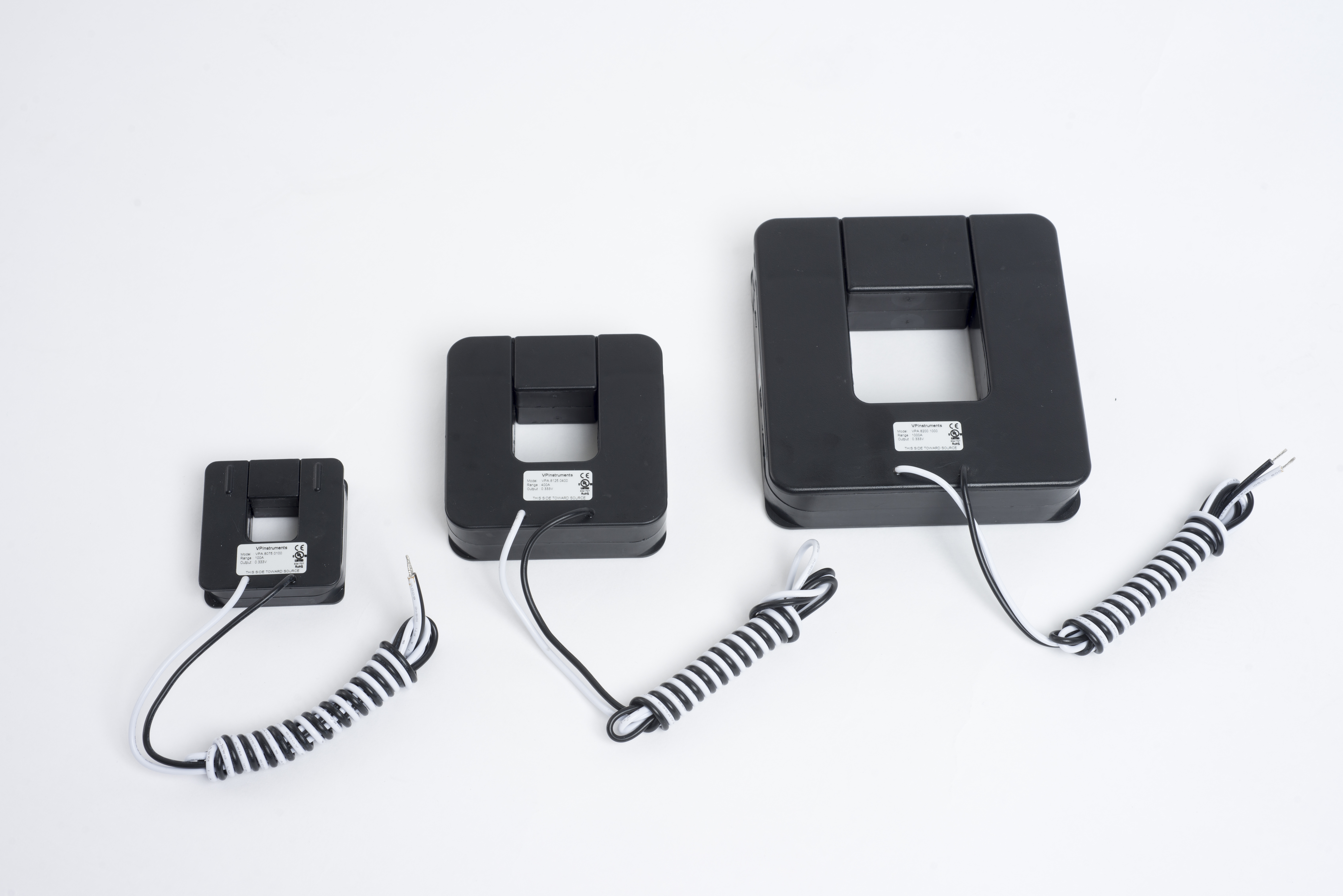

Current Transformers (specify one per phase; delta systems may need only two)
Order Code | Description | CT Opening Size |
VPA.8075.0100 | Current Transformer 100A, 0.3333V output | 19.1mm / 0.75" |
VPA.8125.0200 | Current Transformer 200A, 0.3333V output | 31.8mm / 1.25" |
VPA.8125.0400 | Current Transformer 400A, 0.3333V output | 31.8mm / 1.25" |
VPA.8200.0600 | Current Transformer 600A, 0.3333V output | 50.8mm / 2" |
VPA.8200.1000 | Current Transformer 1000A, 0.3333V output | 50.8mm / 2" |
VPA.8200.1500 | Current Transformer 1500A, 0.3333V output | 50.8mm / 2" |
For further information on our comprehensive range of products and services please get in touch with us by visiting our contact page.
