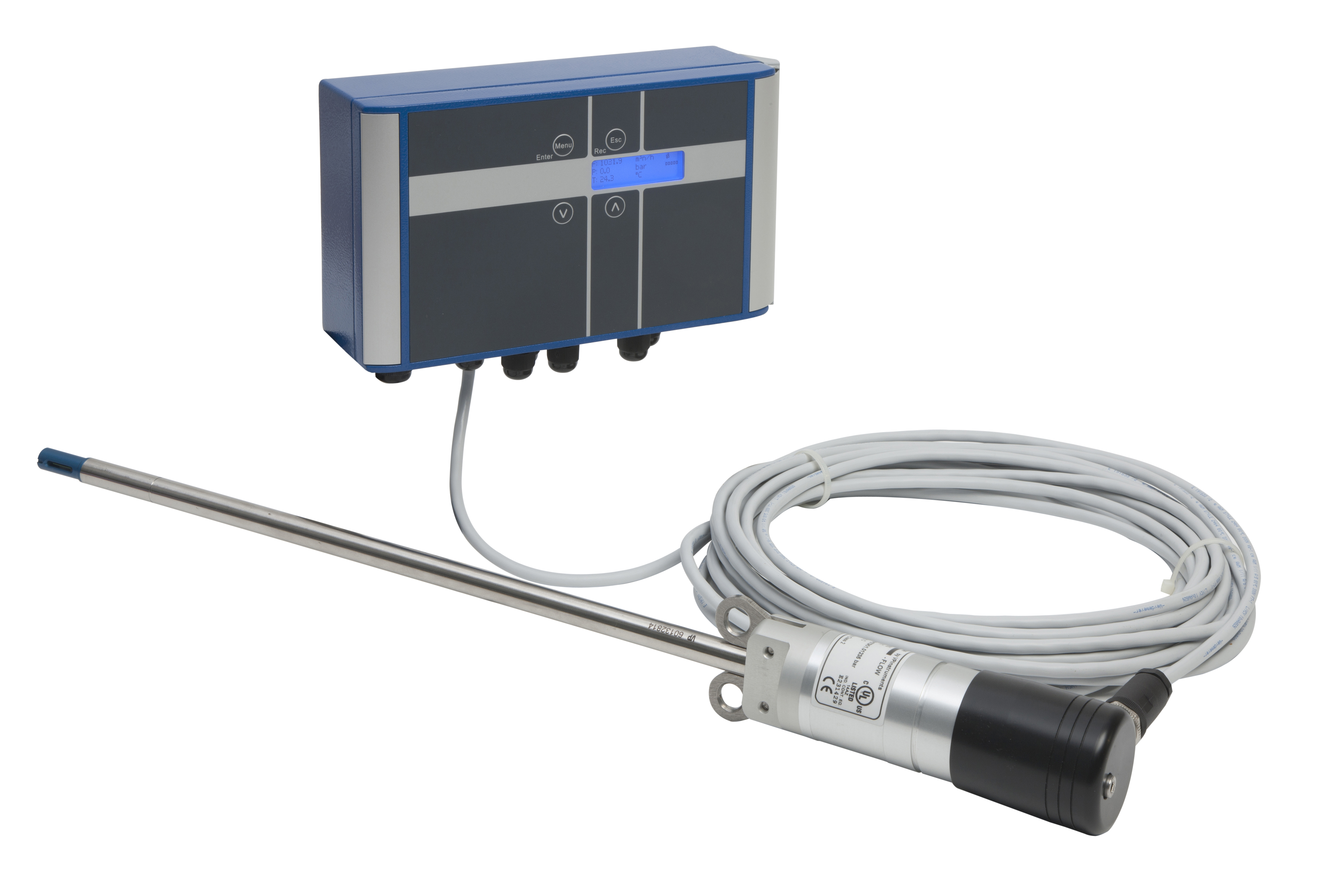

A plug-and-play wall-mount display unit with built-in power supply and 2 million point data logger. Connects directly to any VPFlowScope meter plus up to 4 additional analog sensors, logging up to 8 channels simultaneously — ideal for permanent monitoring and air audits.
Efficiency
Monitoring the efficiency of your compressor system. Measure with the VPFlowScope in the main pipe line of your system and use 4 power meters to measure the power consumption of each compressor.
Air audits
The VPFlowTerminal can be used for air audits since you collect all data within one data logger. This makes the data collection, read out and analysis very convenient. Total package: Measure flow together with dew point, pressure and power consumption.
Highlights
- Plug & play wall-mount installation
- 2 million point data logger — up to 8 channels simultaneously
- One dedicated VPFlowScope input (In-Line or Probe)
- 4 generic 4–20mA analog inputs (dew point, pressure, power meters, etc.)
- Built-in 100–240 VAC power supply — powers the VPFlowScope and analog sensors
- LCD 3-line display with blue backlight and auto power save
- Modbus/TCP Ethernet interface for network integration
- USB for configuration and data retrieval via VPStudio software
- IP65 / NEMA 4 painted aluminum housing
- Keypad for basic on-unit configuration
- 1 Year Warranty
Technical Specifications
Parameter |
Specification |
Input Voltage |
100 – 240 VAC mains (pre-wired) |
Housing |
Painted aluminum, IP65 / NEMA 4 |
Display |
LCD, 3 lines |
Backlight |
Blue, auto power save |
Data Logger |
2 million points |
Signal Inputs |
1 × VPFlowScope + 4 × optional 4–20mA analog (non-isolated, loop powered) |
Sensor Power Supply |
24 VDC |
Max Sensor Current |
4 × 25mA (analog sensors), 1 × 150mA (VPFlowScope) |
Data Outputs |
USB (configuration and data retrieval) |
Ethernet Interface |
Modbus/TCP port |
Basic Configuration |
Via keypad |
Flow Meter Connection |
M12, 8-pin |
Additional Connections |
Cable glands for analog inputs, Ethernet |
Dimensions |
230 × 130 × 75 mm / 9.1 × 5.1 × 2.95" |
Weight |
1.6 kg / 3.53 lbs |
Ordering Information
Order Code |
Description |
VPT.5110.000 |

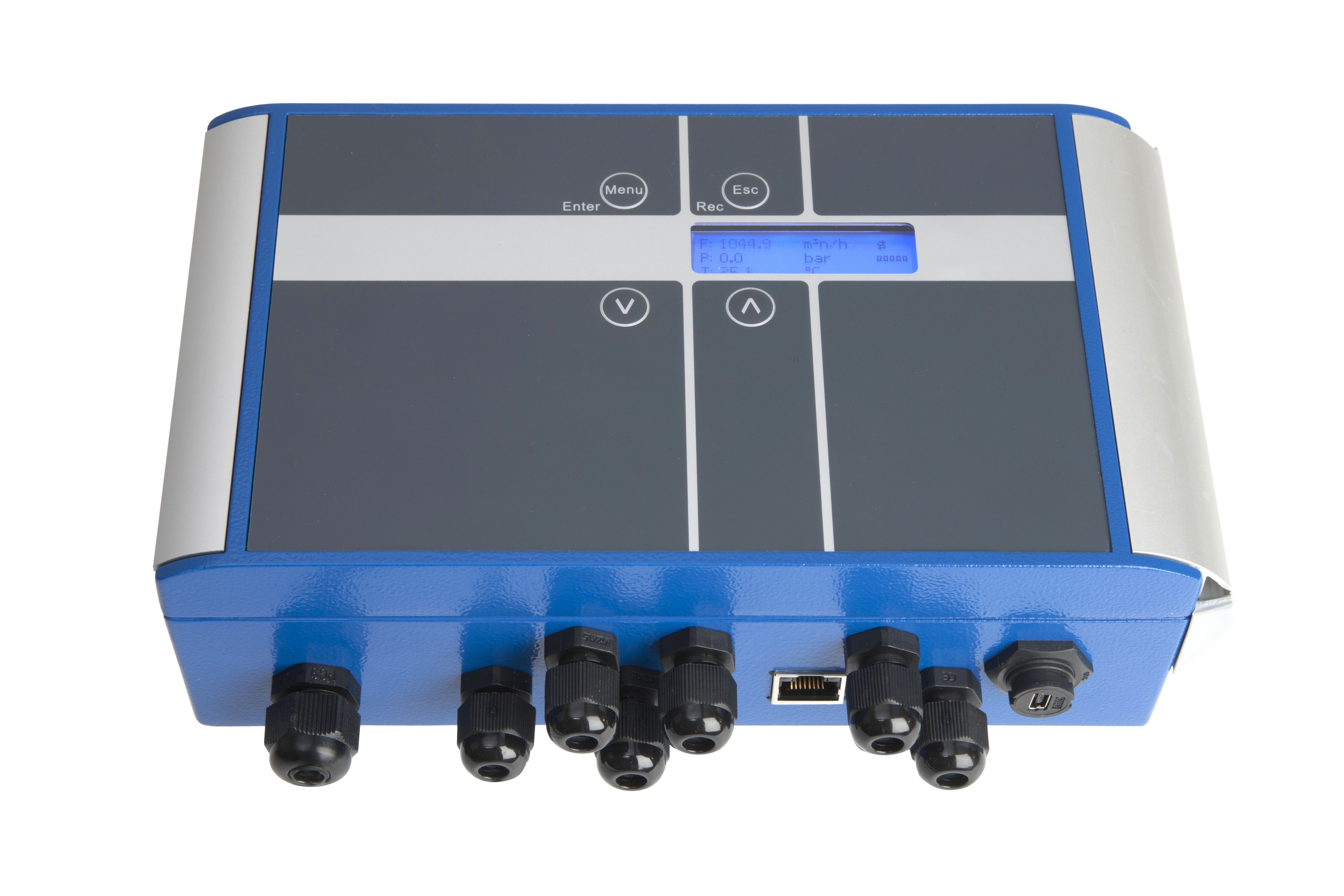

VPFlowTerminal for VPFlowScope — includes display with built-in data logger, pre-mounted VPFlowScope connector, built-in power supply, black connector cap with 10m / 32.9ft cable, 4 analog inputs. Configured and read out via VPStudio. |
KITS

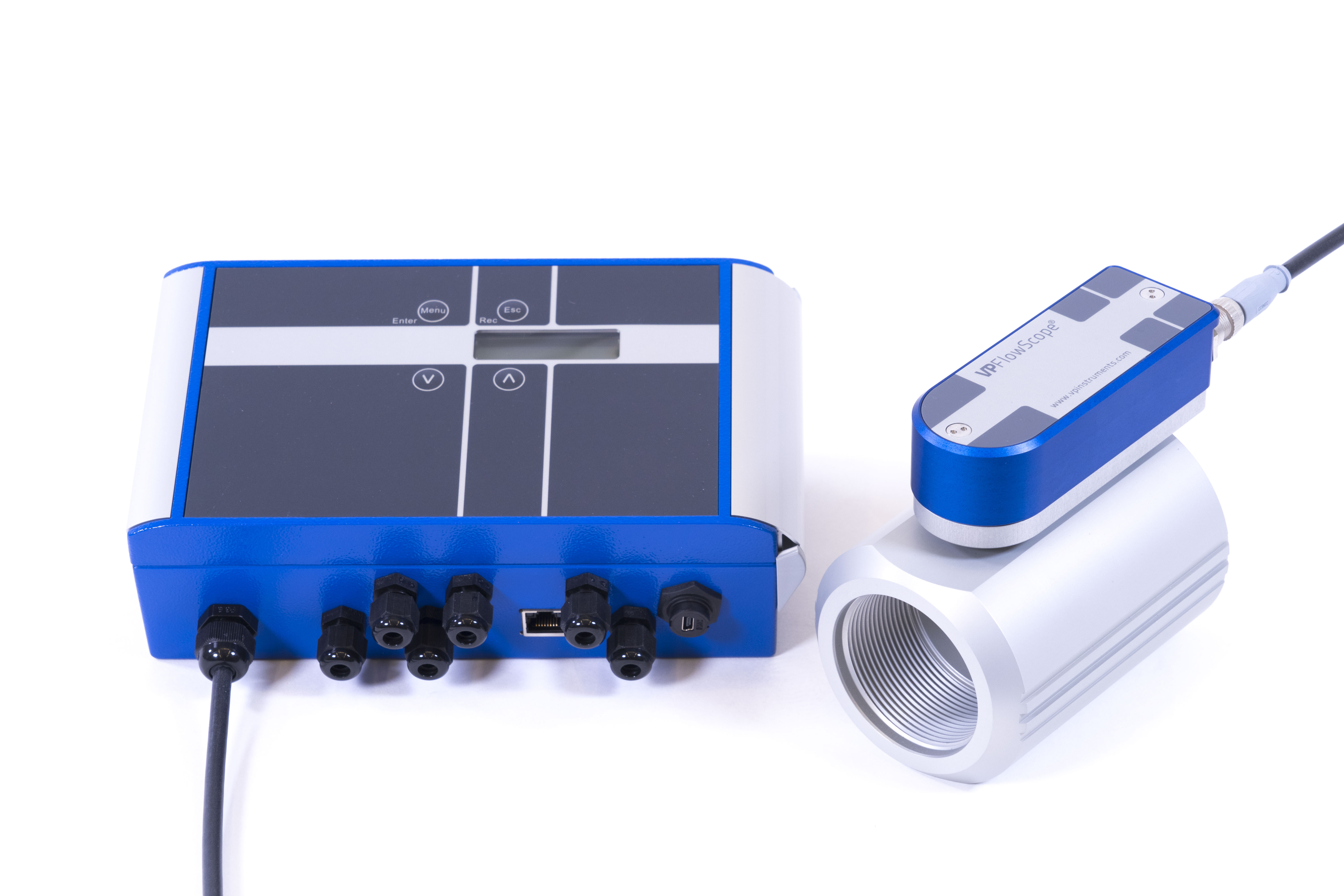

VPS.R080.M050.VPT.KIT 0.5" VPFlowScope In-Line with VPFlowTerminal
VPS.R250.M100.VPT.KIT 1.0" VPFlowScope In-Line with VPFlowTerminal
VPS.R01K.M200.VPT.KIT 2.0" VPFlowScope In-Line with VPFlowTerminal
