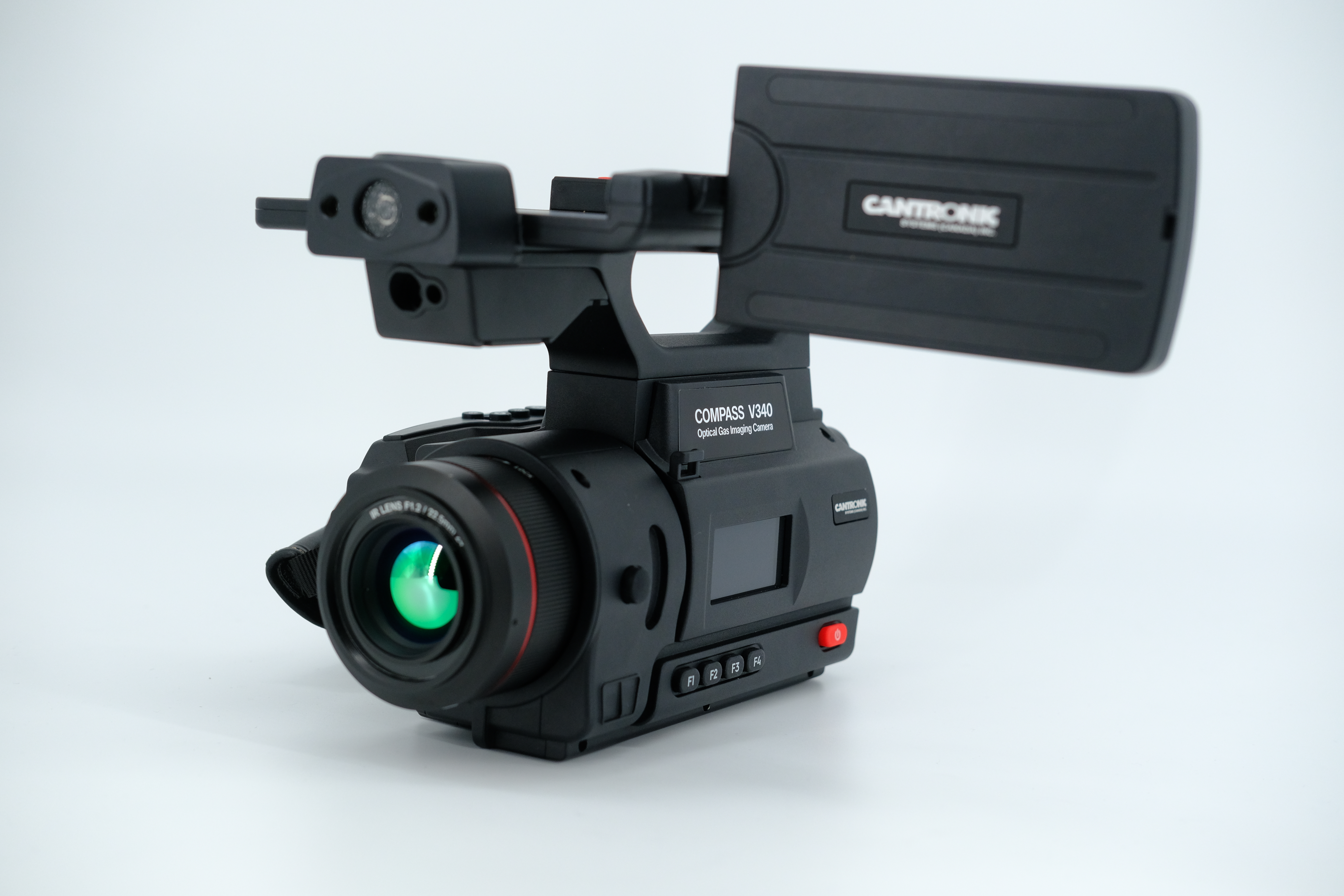

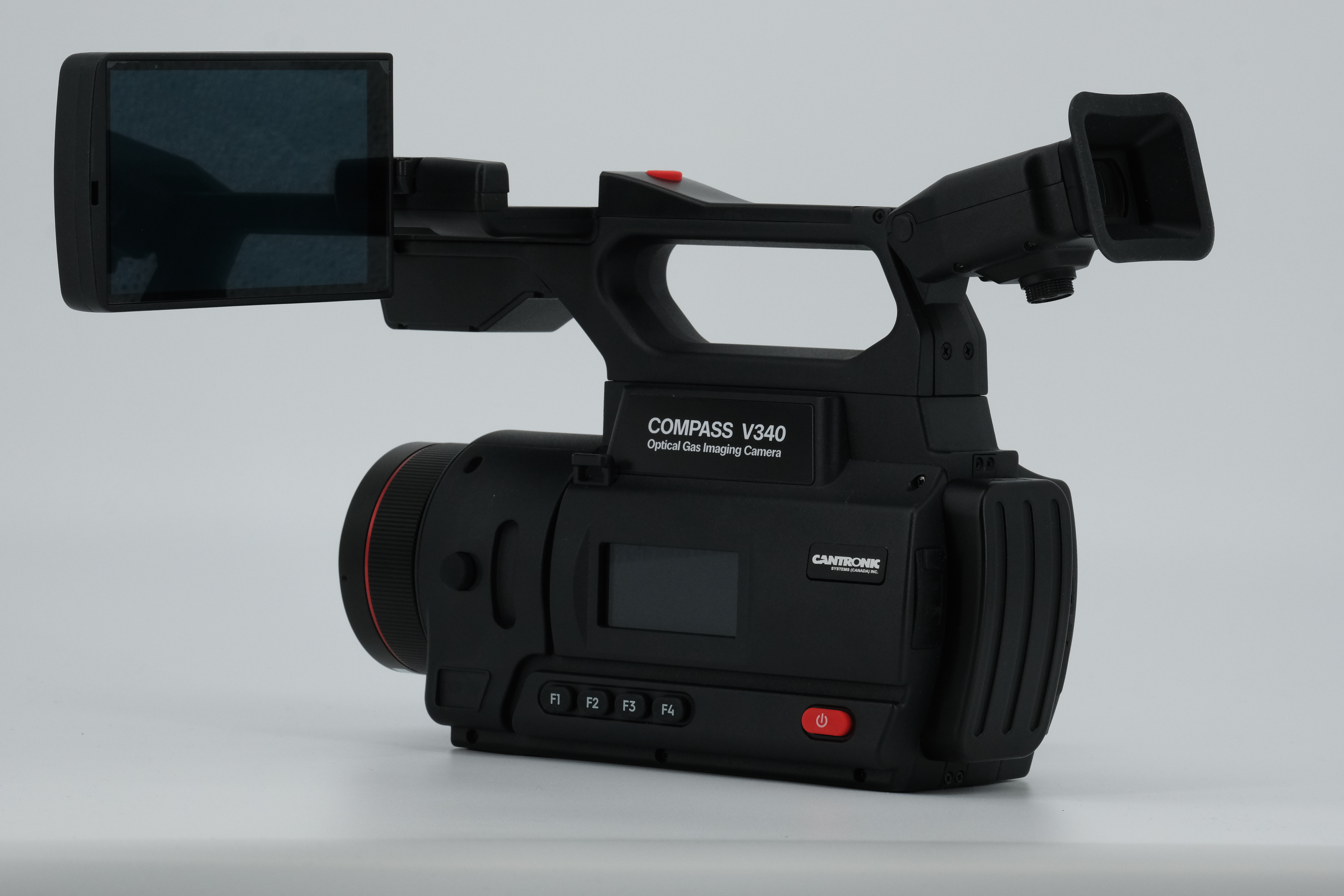

The Cantronic COMPASS V340 is a handheld Optical Gas Imaging camera that makes invisible gas leaks visible in real time. Built for Alberta's oilfield environment, it detects methane and 400+ VOC gases across pipelines, valves, tanks, and flare stacks — helping operators meet regulatory requirements while protecting people and bottom lines.
The COMPASS V340 brings enterprise-grade gas leak detection to the field in a single handheld unit. Powered by KT Photonics' High Operating Temperature (HOT) mid-wave infrared detector, the V340 delivers crystal-clear real-time thermal imaging at a spectral response of 3.2–3.5μm — the sweet spot for methane, propane, benzene, and hundreds of other hydrocarbons common in upstream and midstream operations.
Where traditional leak detection methods require time-consuming sniffers or shutdown windows, the V340 lets technicians scan large areas rapidly without stopping production. Built-in gas quantification, plume colorization, and GPS tagging turn every scan into documented, reportable data — critical for operators navigating Canada's evolving emissions regulations (EPA OOOOa/b/c, AER LDAR requirements).
The V340 is ATEX certified for use in hazardous areas, operates in temperatures from -20°C to +50°C, and runs for over 3.5 hours per charge — ready for a full day shift in northern Alberta conditions. With Wi-Fi, Bluetooth, and USB-C connectivity, findings move from camera to report without friction.
For Trido Energy Services customers already investing in facility electrification and chemical injection optimization, the V340 is the next logical tool: find and eliminate the losses that offset the savings you've already built.
Key Features and Benefits
Detects 400+ VOC gases including methane |
One tool covers your entire facility gas profile |
Built-in gas quantification |
Quantify leaks for reporting without third-party software |
ATEX certified |
Safe to operate in classified hazardous areas |
EPA OOOOa/b/c compliant |
Satisfies LDAR regulatory requirements out of the box |
GPS-tagged imagery |
Every leak finding is locationally documented |
Plume colorization |
Visual leak severity makes prioritization fast |
-20°C operating range |
Reliable performance through Alberta winters |
3.5+ hour battery life |
Full shift capability without recharging |
16x digital zoom |
Inspect elevated or hard-to-reach equipment safely |
5.5" 1080p display |
Clear viewing in bright outdoor conditions |
Wi-Fi, Bluetooth, USB-C |
Fast data transfer and reporting integration |
Technical Specifications
Detector: HOT Midwave T2SL | 320×256 resolution | 30μm pitch | 3.2–3.5μm spectral range | ≤10mK thermal sensitivity | f/1.2 aperture | 22.5mm lens | 24°×19.2° FOV
Visual Camera: 1/2.7" CMOS | 16MP | 8mm lens | 40°×30° FOV | 16x digital zoom
Display: 5.5" LCD, 1920×1080
Storage: Micro SD + internal
Output: Mini HDMI, USB-C
Battery: 7.4V Li-ion, >3.5 hrs typical use
Operating Temp: -20°C to +50°C | Storage: -40°C to +60°C
Weight: ≤2.8 kg | Dimensions: 311×196×195 mm
Cool-down Time: <5 minutes
