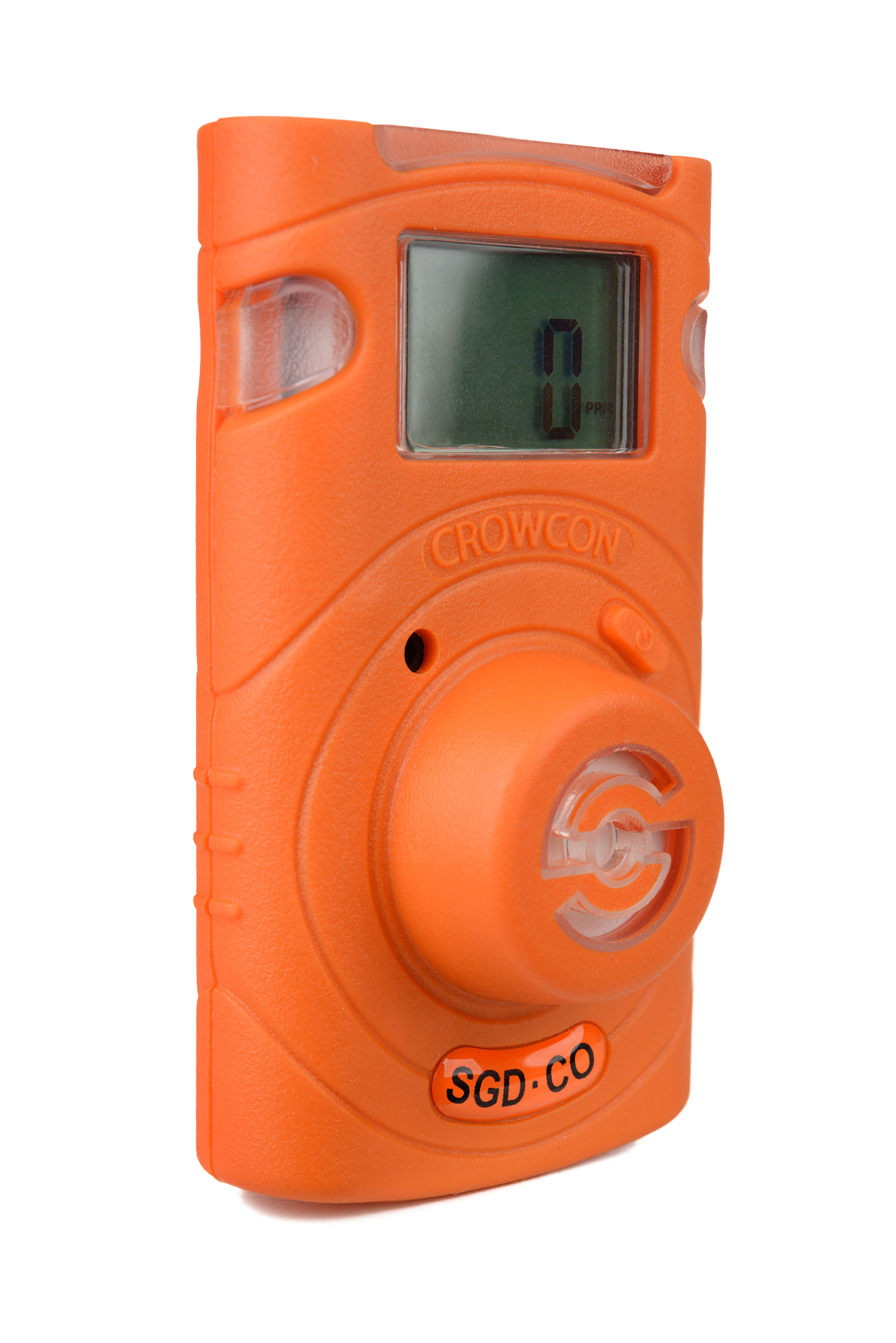

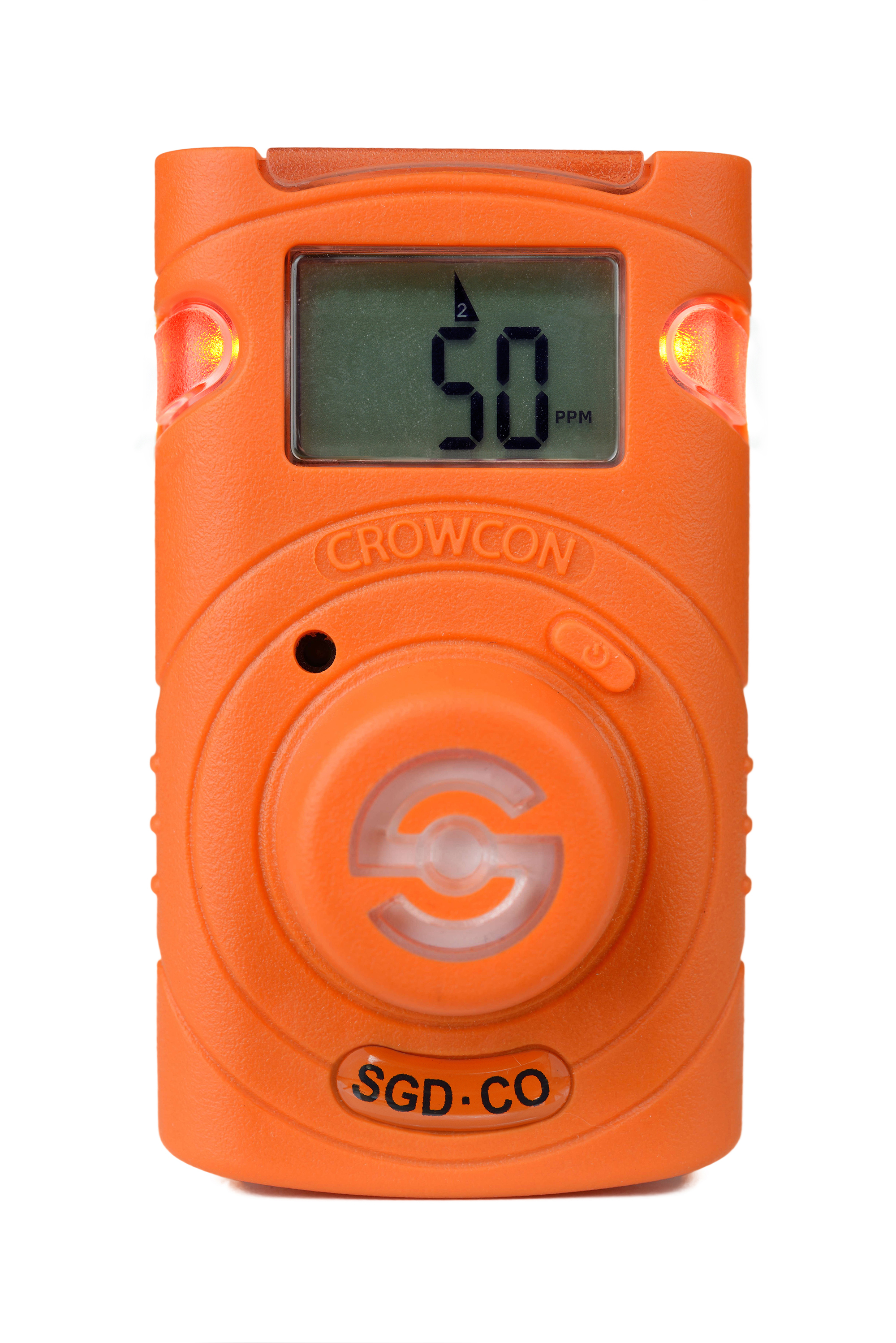

A compact, maintenance-free single-gas personal monitor with a 2-year fixed operational life — available for H₂S, CO, and O2 — with changeable alarm levels, IP66/67 protection, and a docking station for effortless fleet compliance. No service team required.
Key Features & Benefits
- Maintenance-free 2-year fixed operational life — activate and deploy, no ongoing servicing required
- Over 2,900 alarm minutes guaranteed operational life (based on 4 alarm minutes per day)
- Available for H₂S, CO, and O2 — multiple pre-set alarm level options per gas
- Changeable alarm levels — adapt to evolving regulations or site procedures without device replacement
- Clip SGD docking station for bump testing and compliance management — no service team required
- Built-in bump test due indicator — keeps workers and supervisors proactively compliant
- Automatic self-test on activation and every 20 hours — continuous battery integrity monitoring
- Single-button operation — minimal training, maximum accessibility
- Top, front, and side visual LED alarms — visible from all angles
- 90dB audible alarm and vibrating alert — triple-mode alerting
- IP66 and IP67 rated — water and dust resistant
- Operating temperature -30°C to +50°C — suited for Alberta winter field conditions
- CSA/UL Class I, Division 1 & 2, Groups A, B, C, D — Alberta oilfield ready
- ATEX Zone 0 and IECEx certified
- USB IR link for event download and device configuration
- 6-month shelf life prior to activation — stockable for deployment planning
Technical Specifications
| Size | 91 x 54 x 32mm |
| Weight | 93g (toxic) / 104g (O2) |
| Alarms | 90dB audible @ 10cm; top, front and side visual LEDs; vibrating |
| Event Log | 30 most recent events |
| Operating Temperature | -30°C to +50°C (all gas versions) |
| Humidity | 15–90% RH |
| Ingress Protection | IP66 and IP67 |
| Operational Life | 2 years / >2,900 alarm minutes from activation |
| Shelf Life | 6 months prior to activation |
| Communication | USB IR link (CL-IR-Link) for event download and configuration |
| Sensor Ranges | H₂S 0–100ppm; CO 0–300ppm; O2 0–30% vol |
Safety and Compliance Certifications
- CSA-C22.2 No.157 / UL-913: Class I, Division 1 & 2, Groups A, B, C, D — T4
- ATEX: II 1G Ex ia IIC T4 Ga — Zone 0
- IECEx: Ex ia IIC T4 Ga
- EMC Directive 2014/30; FCC CFR 47 Part 15; ICES-003
Zero ongoing maintenance cost over the 2-year lifespan — no calibration gas, no sensor replacements, no service technician time. The docking station enables full fleet bump test compliance without a dedicated technical team, reducing labour overhead on large dispersed crews. 6-month shelf life allows bulk purchasing and staged deployment without waste. Multiple pre-set H₂S alarm configurations accommodate varying site and regulatory requirements without stocking separate product lines.
