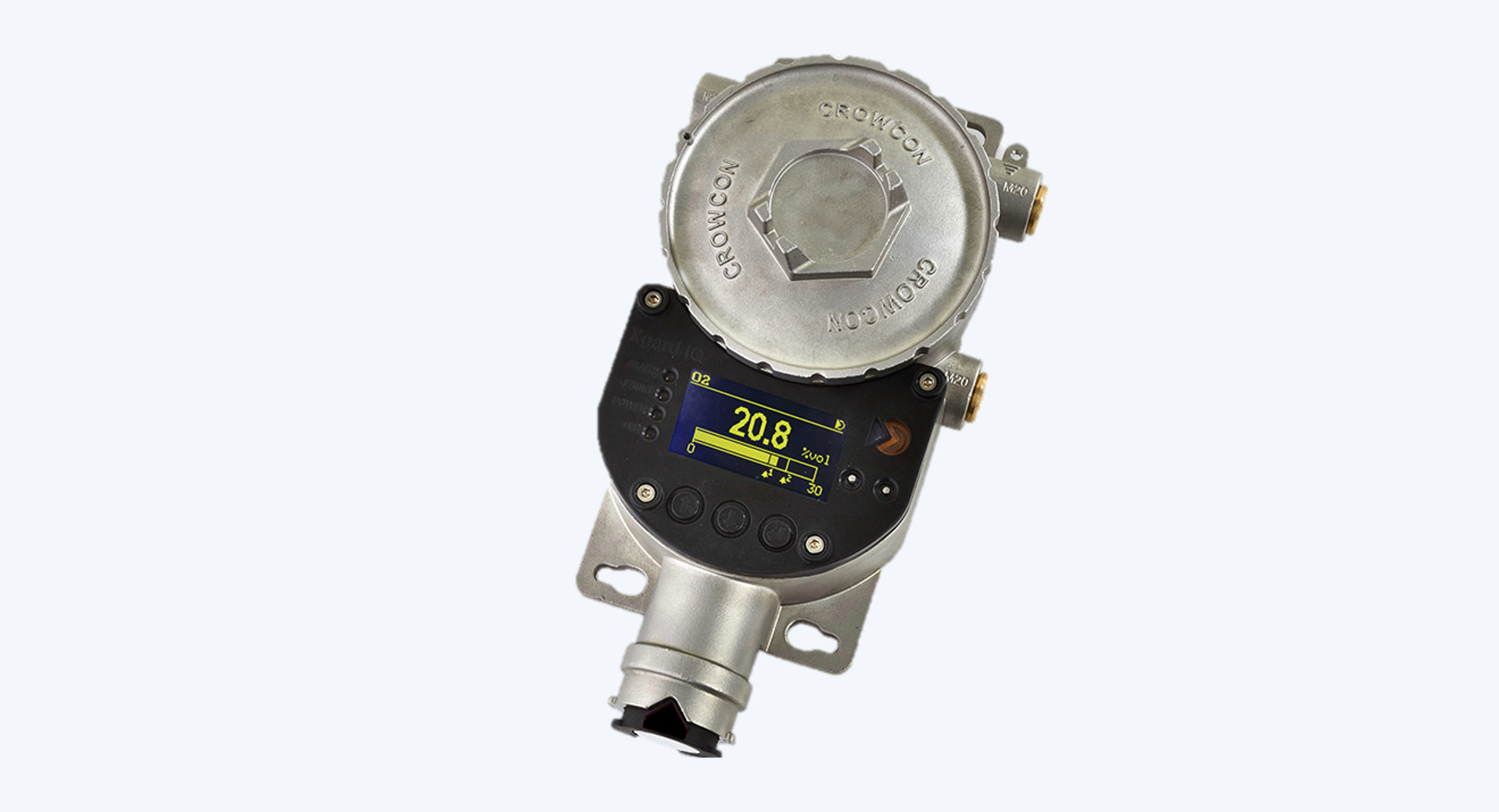

Crowcon Xgard IQ

An intelligent fixed gas detector and transmitter with SIL2 certification, hot-swap sensor modules, OLED display, and full CSA/FM North American approval — covering flammable, toxic, oxygen, and H₂S detection across Crowcon's complete sensor technology range.

The Crowcon Xgard IQ is an intelligent, versatile fixed gas detector and transmitter built to minimize the time operators spend in hazardous areas performing routine maintenance. With hot-swap sensor modules that require no hot work permit, auto-sense and auto-configure functions that eliminate wiring errors and manual setup, and a bright OLED display readable even in dark locations, the Xgard IQ is engineered for real-world oilfield facility installation and long-term operation. A universal transmitter body accepts Crowcon's full range of sensor technologies — electrochemical, catalytic, infrared, and MEMS — covering H₂S, flammable gases, toxic gases, and oxygen across an extensive gas library. SIL2 certified to IEC 61508 and EN 50402, the Xgard IQ meets the functional safety requirements of safety-instrumented systems in process facilities. Critically for the Alberta market, the Xgard IQ carries full FM approval with CSA Canadian certification, making it immediately deployable into classified hazardous locations without the certification gaps present in some other Crowcon fixed products. Built from 316 stainless steel, IP66 rated, and operating from -40°C to +75°C, it is built to perform through Alberta winters and summer processing conditions alike.

Key Features & Benefits

• Hot-swap sensor modules — removed and replaced without hot work permit or special tools; minimizes hazardous area exposure time
• Auto-sense function — automatically detects 4-20mA sink or source control system; eliminates wiring faults on installation
• Auto-configure function — automatically uploads gas type, range, units, and alarm levels when sensor module is plugged in
• Sensor range selection — full-scale range configurable via display menu to match site-specific requirements
• Smart bump and speedy bump test — on-screen guided sensor health verification; automatic next-due reminder
• Calibration due warning — automatic reminder to maintain sensor accuracy and compliance
• Bright OLED display (128 x 64 pixels) — readable in dark and low-visibility locations
• Positive safety indicator — amber/red/green LED confirms operational status at a glance and from a distance
• SIL2 certified (IEC 61508 / EN 50402) — suitable for safety-instrumented system applications
• FM approval with full CSA Canadian certification — ready for Alberta hazardous area installations
• Universal transmitter body — one platform covers Crowcon's full sensor technology range
• Standard 4-20mA (auto sink/source), RS-485 Modbus RTU outputs; optional HART 7
• Optional alarm and fault relays — dual alarm plus fault SPDT contacts, fully configurable
• NAMUR NE43 compliant output — integrates with process safety systems
• Operating temperature -40°C to +75°C — suited for Alberta field conditions year-round
• 316 stainless steel enclosure, IP66 rated — corrosion-resistant in sour gas environments
• 3-year transmitter warranty

Technical Specifications

Safety and Compliance Certifications

• FM Approval — US: ANSI/UL 60079-0/1/11, Class 1 Zone 1, AEx db ia IIC T4 Gb
• FM Approval — Canada: CSA C22.2 No. 60079-0/1/11, Ex db ia IIC T4 Gb
• ATEX: EN IEC 60079-0/1/11, Ex II 2G Ex db ia IIC T4 Gb
• IECEx: IEC 60079-0/1/11, Ex db ia IIC T4 Gb
• Additional: INMETRO, ECAS-Ex, PESO, CNEx, CE
• Functional safety: SIL2, IEC 61508, EN 50402
• Performance: ANSI/FM/UL EN 60079-29-1, FM 6320, FM 6340, EN 50271, EN 50104

Downloads

• Xgard IQ Full Manual Issue 4 GB
