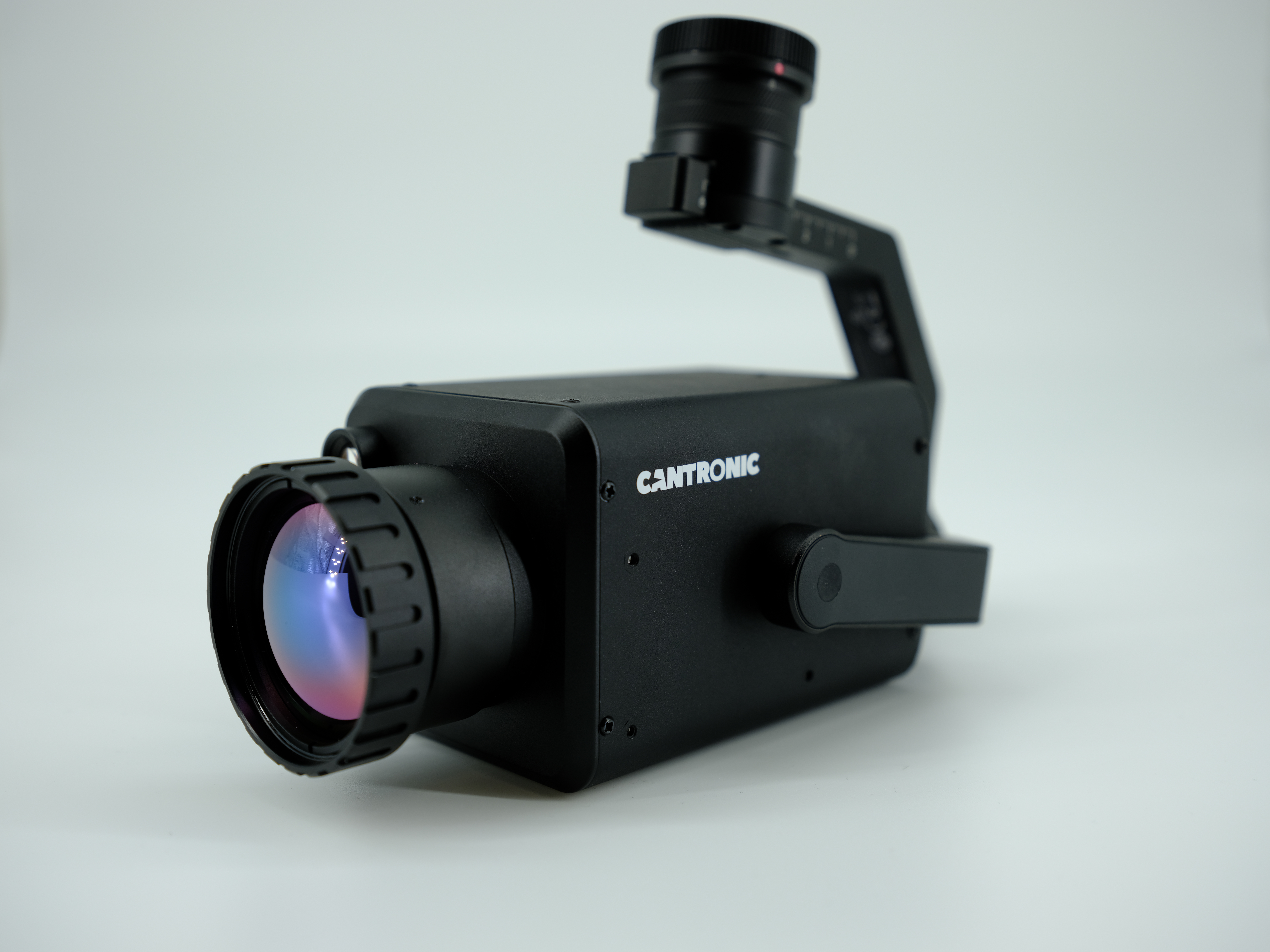

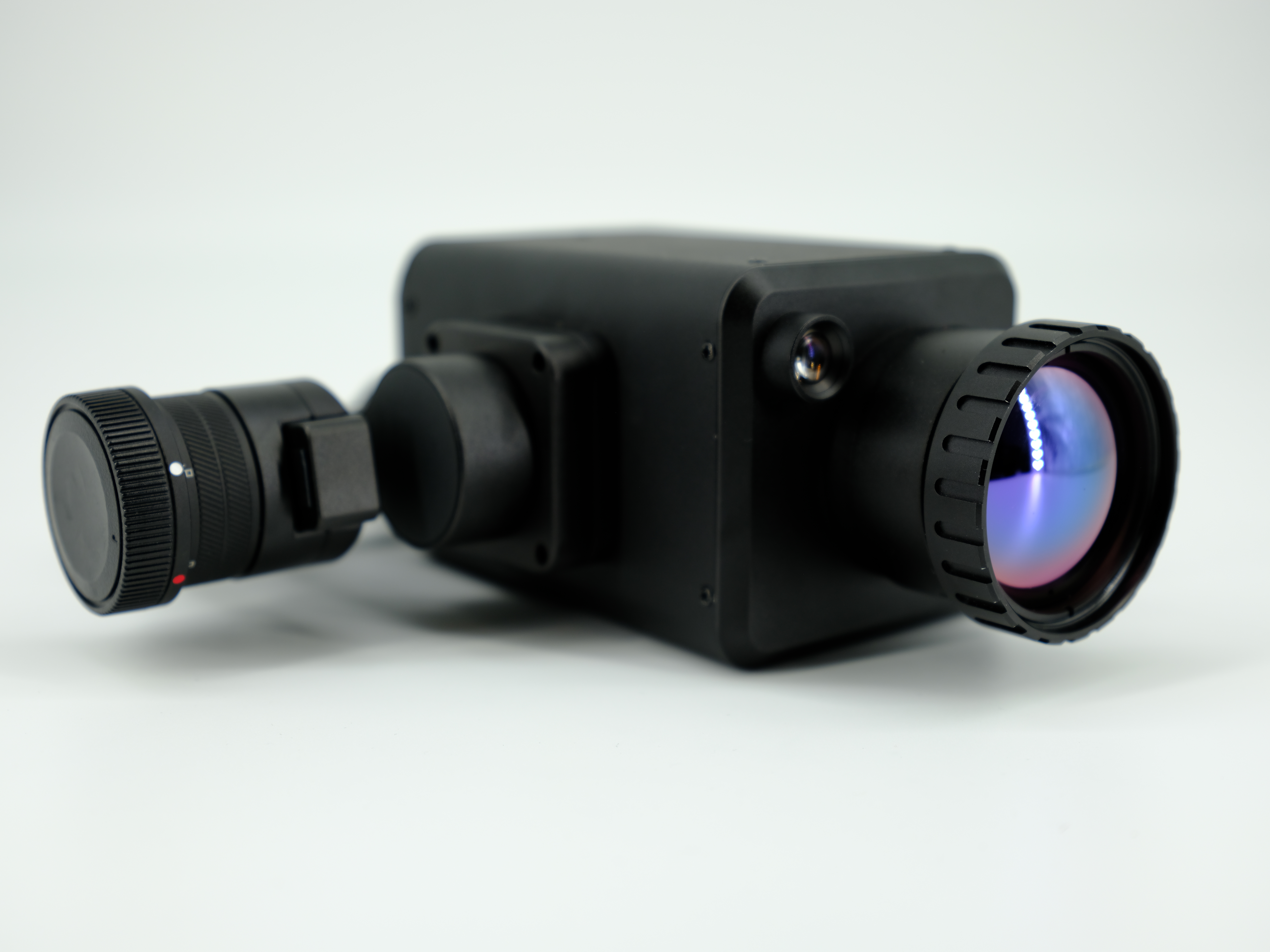

The Cantronic RedEagle U340 puts OGI gas leak detection in the air. Drone-mounted and compatible with DJI M300/M350, it detects methane and 400+ VOC gases from up to 200 metres — covering large facilities faster, safer, and without putting personnel near hazardous equipment.
⚠️ Please Note: The RedEagle U340 is a camera payload only and does not include a drone. Compatible with DJI M300, DJI M350, and Mavlink-enabled UAV platforms. Drone must be sourced separately.

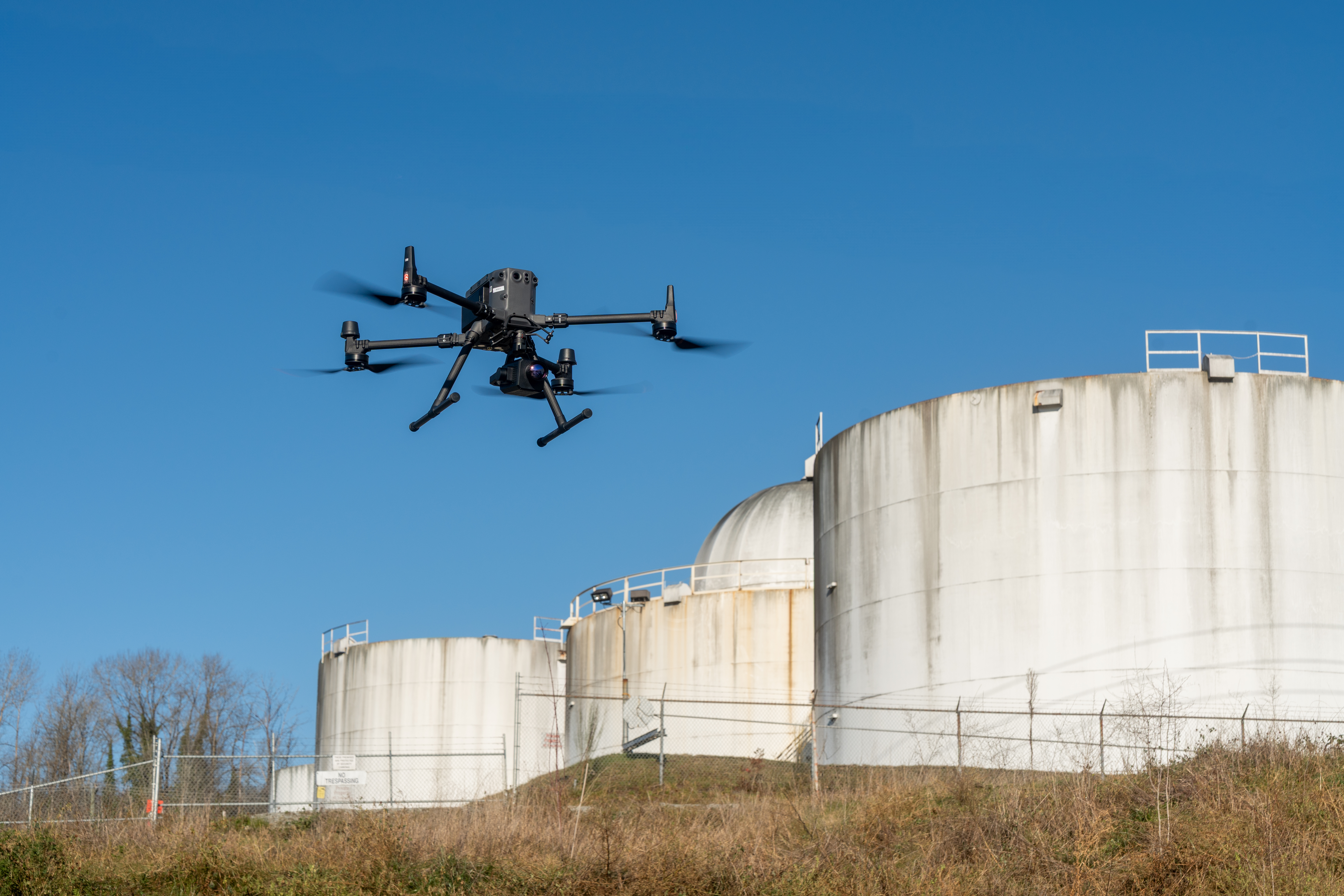

When a facility is too large, too dangerous, or too remote to walk with a handheld camera, the RedEagle U340 changes the equation. Designed specifically for UAV integration with DJI M300, M350, and Mavlink-compatible platforms, the U340 brings the same proven HOT T2SL MWIR detector technology to aerial LDAR inspections — detecting methane, propane, benzene, and hundreds of other hydrocarbons from distances up to 200 metres.

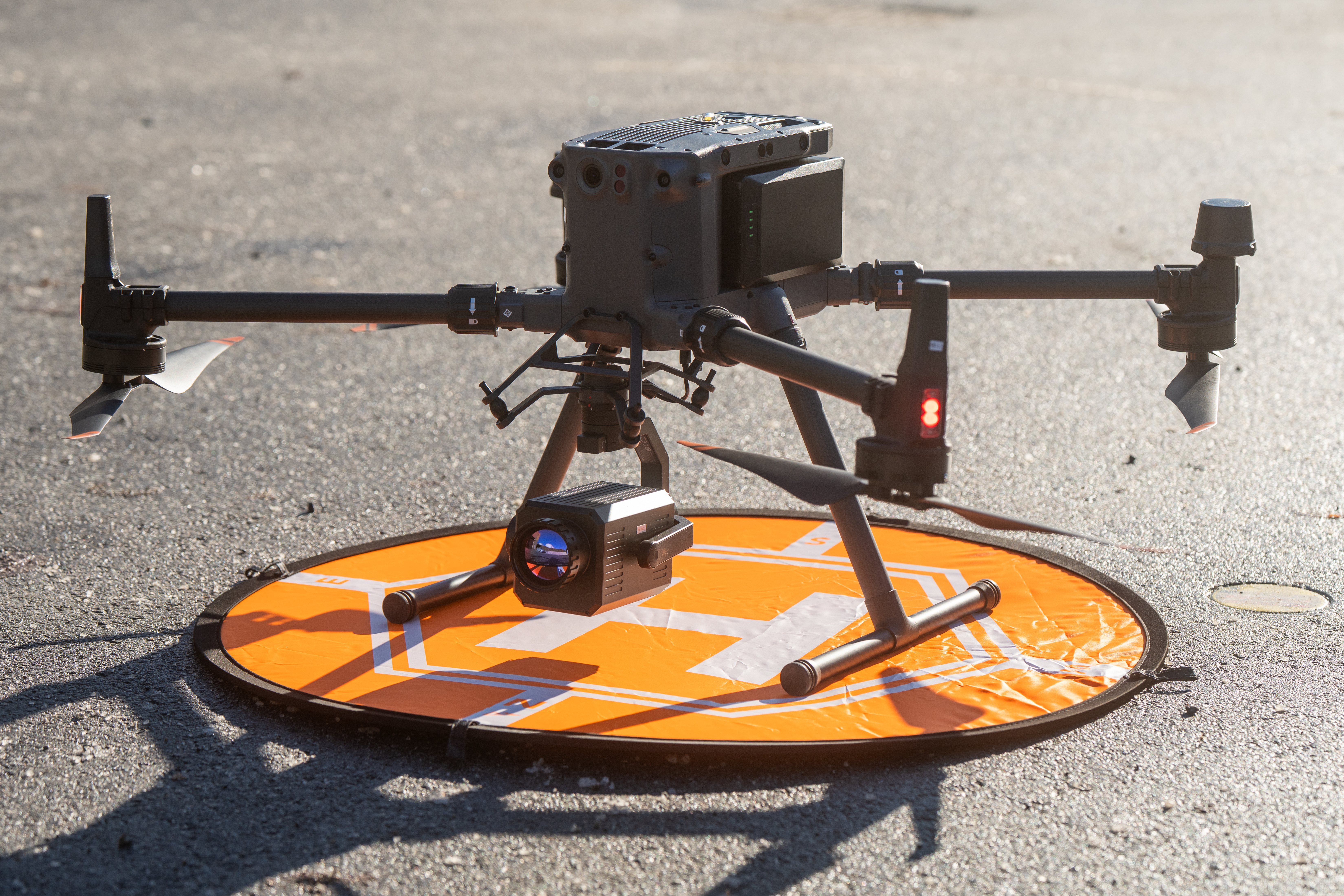

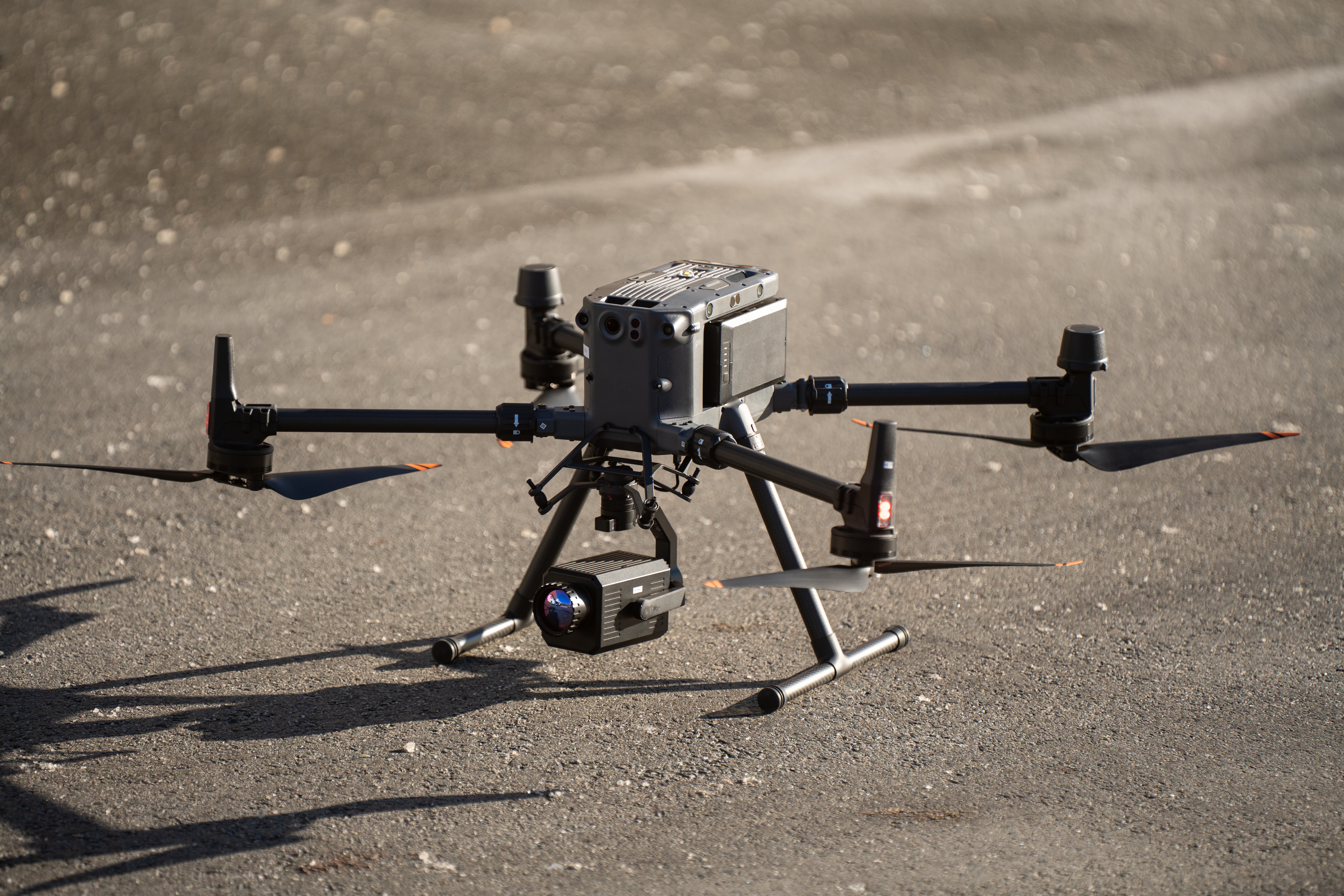

At just 800 grams, the U340's low SWaP (Size, Weight, and Power) design mounts cleanly on enterprise drones without sacrificing flight time or stability. Dual IR/visual imaging and eight color palettes give operators a complete picture of leak location and severity in real time, transmitted directly through the DJI Pilot 2 app or third-party ground control software.
For Alberta operators managing large pad sites, pipeline corridors, tank farms, or remote facilities where boots-on-ground inspections are time-consuming or hazardous, the U340 enables systematic coverage that simply isn't practical with handheld equipment alone. EPA OOOOa/b/c compliance documentation is built into every flight.
Used alongside the COMPASS V340 handheld, operators can deploy the RedEagle for rapid wide-area sweeps and then confirm and quantify findings at ground level — a two-tool LDAR program that is faster, safer, and more defensible than either approach alone.
Key Features and Benefits
DJI M300/M350 + Mavlink compatible |
Works with drones many operators already own |
Detection range up to 200m |
Inspect elevated stacks, remote lines, and hazardous areas without exposing personnel |
Long-life HOT T2SL MWIR detector |
Same proven sensor as handheld units; no cryogenic coolant required |
400+ detectable gases |
Full hydrocarbon coverage from one aerial platform |
Low SWaP at 800g |
Minimal impact on drone flight time and handling |
EPA OOOOa/b/c compliant |
Satisfies LDAR regulatory requirements |
Dual IR/Visual/Dual image mode |
Simultaneous gas visualization and location reference |
8 color palettes + Gas Enhancement Mode |
Clear visual distinction between leak severity levels |
64GB MicroSD included (up to 1TB) |
Store full inspection sessions without data management gaps |
DJI Pilot 2 App / 3rd party interface |
Integrates with existing drone workflows |
GPS-tagged data |
Every detection event is location-documented for reporting |
-20°C operating range |
Reliable performance through Alberta winter conditions |
Technical Specifications
Drone Compatibility: DJI M300, DJI M350, Mavlink
Detector: Long-life HOT T2SL MWIR | 320×256 | 30μm pitch | 3.2–3.5μm spectral filter | ≤15mK thermal sensitivity | 15° FOV, F=35mm lens | 30 fps
Detection Modes: Default / Gas Enhancement / PseudoColor
Image Modes: IR / Visual / Dual | 8 color palettes
Detection Range: Up to 200m
Storage: 64GB MicroSD included, supports up to 1TB | USB-C output | MP4 video / JPG image
Power: DC 12V
Operating Temp: -20°C to +60°C | Detection Temp: -20°C to +50°C
Start-up Time: ≤5 minutes
Weight: 800g | Dimensions: 170×80×75 mm
