A next-generation 4-in-1 insertion flow meter for compressed air and technical gases, featuring the patented VPSensorCartridge® for field-swappable on-site recalibration with zero downtime. Measures flow, pressure, temperature, and total flow simultaneously. Available in two cartridge sizes covering pipe diameters from 1" to 20". Industry 4.0 ready with built-in Ethernet.
The next step in flow measurement
The VPFlowScope M is a four-in-one insertion flow meter for compressed air and technical gases. It can be installed under pressure and measures flow, pressure, temperature and total flow simultaneously. With the introduction of the VPFlowScope M, recalibration becomes history.
Unlike traditional flow meters, the VPFlowScope M does not require traditional recalibration, where you have to ship the unit back. Instead, the VPFlowScope M consists of a Transmitter and the patented VPSensorCartridge® which reduces recalibration to a simple exchange in the field and lowers your scope 3 emissions as well.
Industry 4.0 ready
With its standard internal Ethernet interface, the VPFlowScope M will connect directly to any network and will form seamlessly one of the cornerstones of any real-time energy management platform. But it is also compatible with the traditional world, thanks to the standard 4..20 mA signals and RS485 (Modbus RTU) interface.
One Transmitter. Many possibilities!
Thanks to the versatile IO, the VPFlowScope M Transmitter can be connected to both the traditional 4..20 mA, RS485 (Modbus RTU), and modern Ethernet based systems. The Transmitter is available in three versions.
No more recalibration

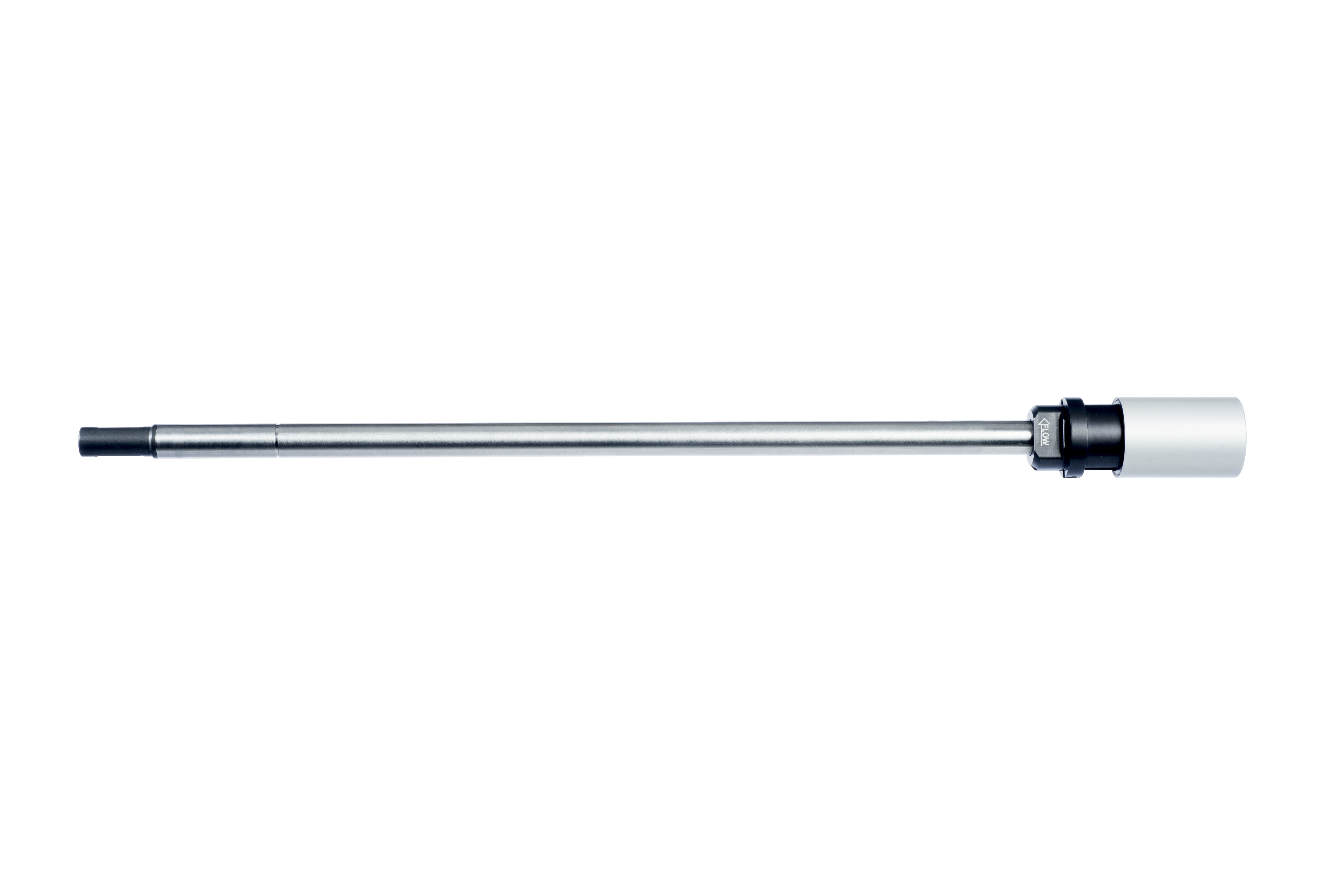

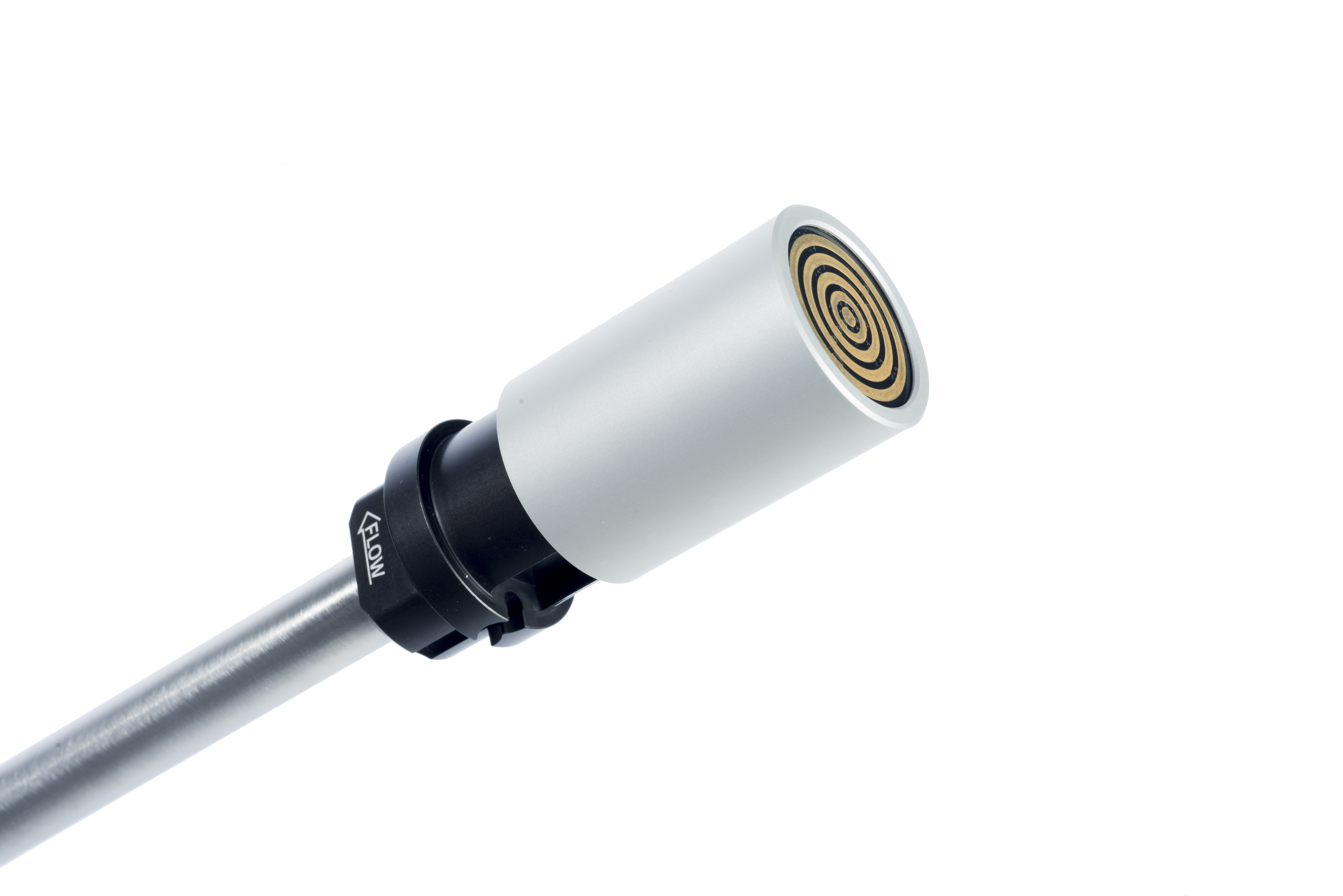

With the patented VPSensorCartridge®, traditional recalibration is something of the past. From now on, you simply exchange the VPSensorCartridge® and continue your measurements. No more waiting, no more downtime.
No more recalibration
With the patented VPSensorCartridge®, traditional recalibration is something of the past. From now on, you simply exchange the VPSensorCartridge® and continue your measurements. No more waiting, no more downtime.
Highlights
- Patented VPSensorCartridge® — swap in the field in minutes, no shipping for recalibration
- 4-in-1: flow, pressure, temperature, totalized flow
- Bi-directional flow measurement (optional)

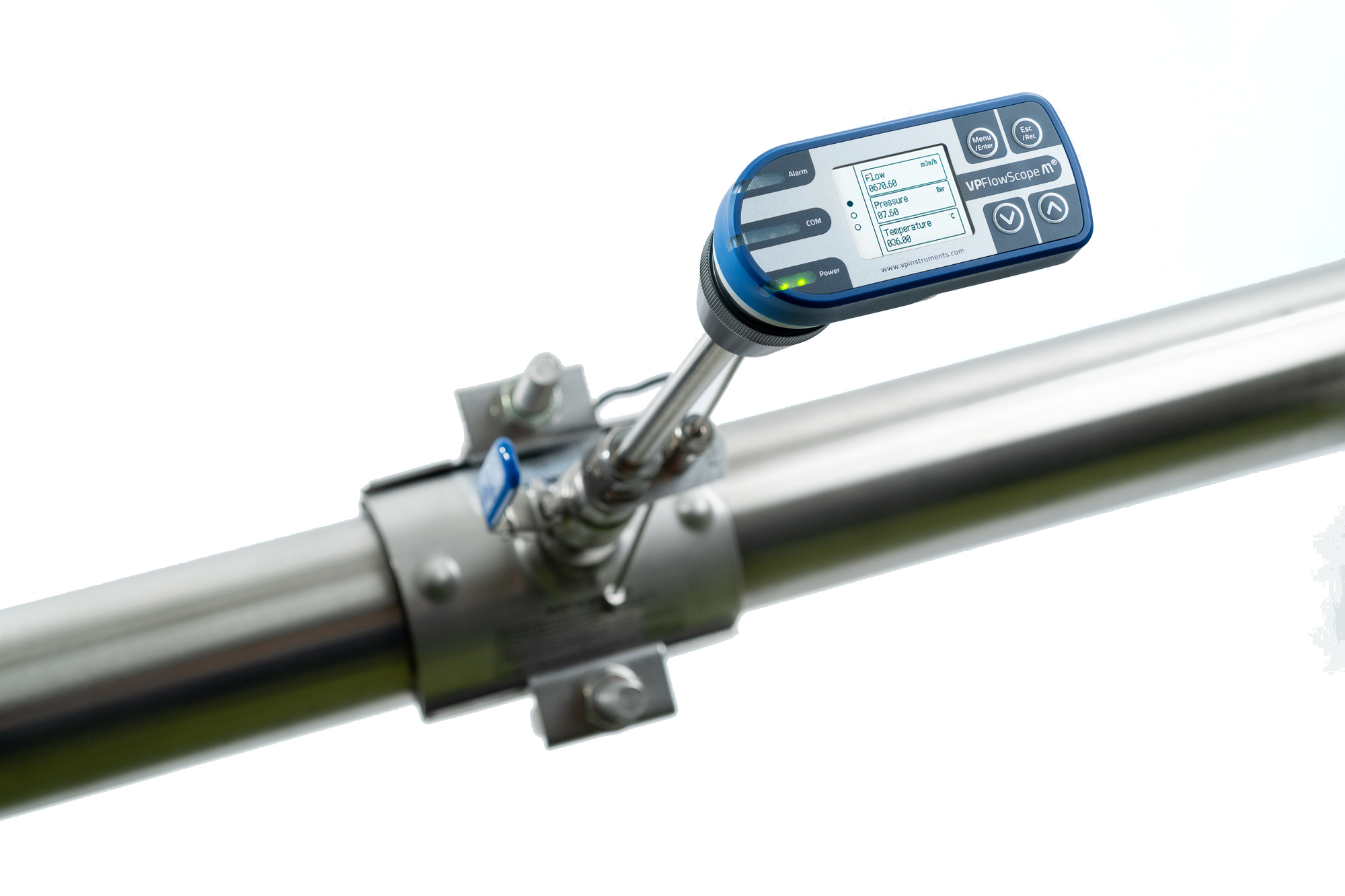

- Can be installed under pressurized conditions — no compressor shutdown required
- Proprietary safety cable prevents probe ejection during pressurized installation

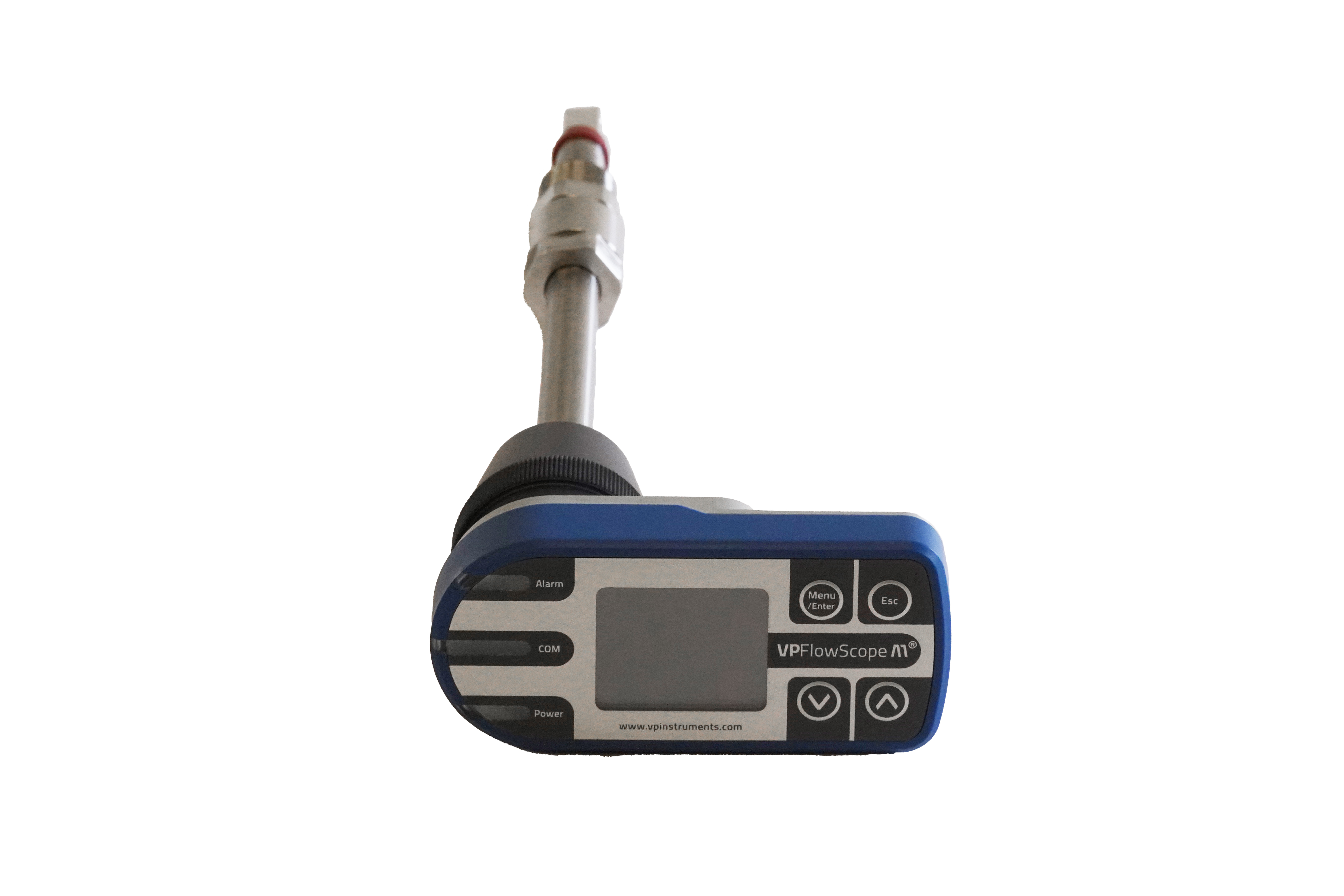

- Available in two cartridge sizes: P220 (1"–2.5" pipe) and P350 (1"–20" pipe)
- Ethernet (Modbus/TCP) + RS485 (Modbus RTU) + 4–20mA/Pulse/Alarm outputs

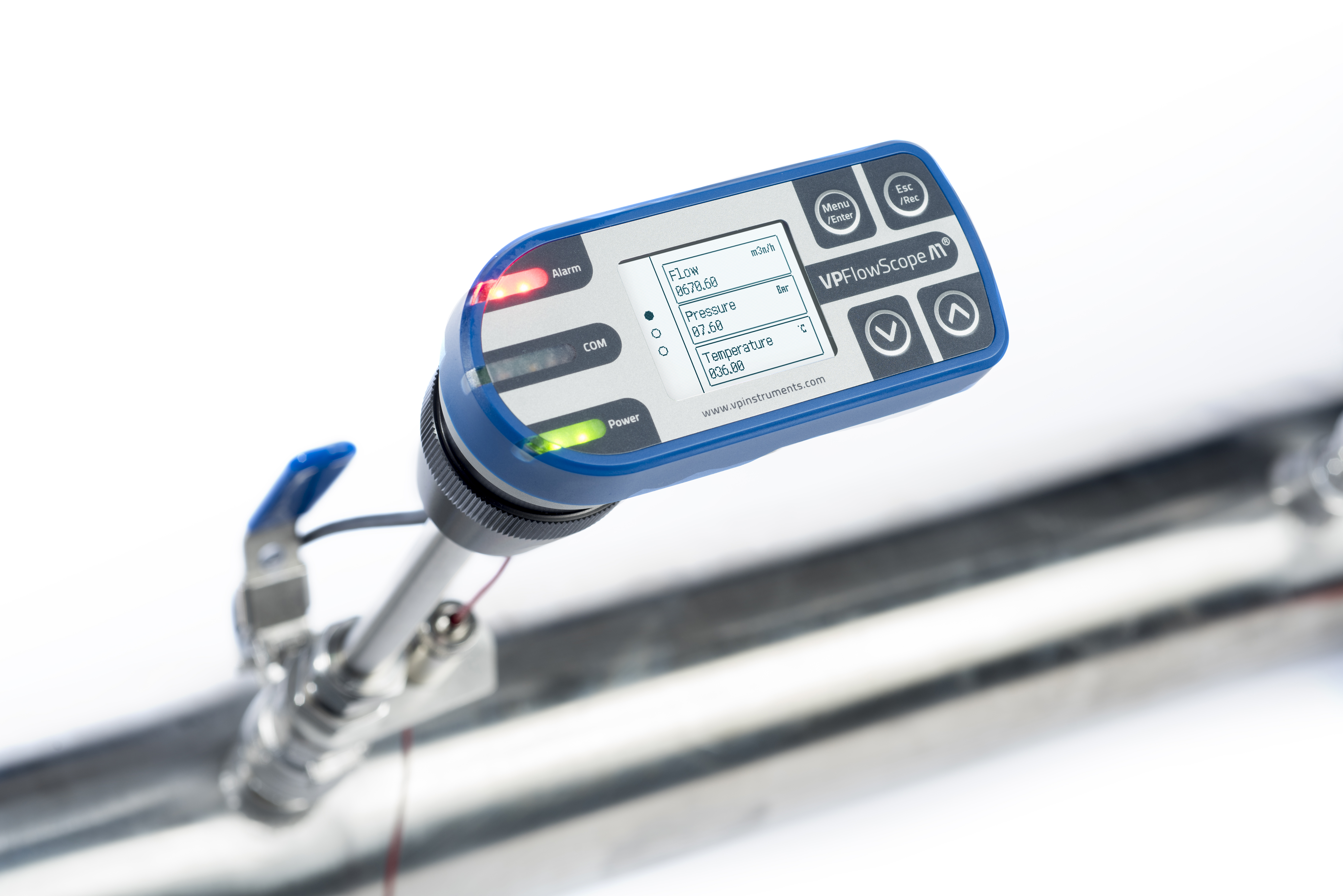

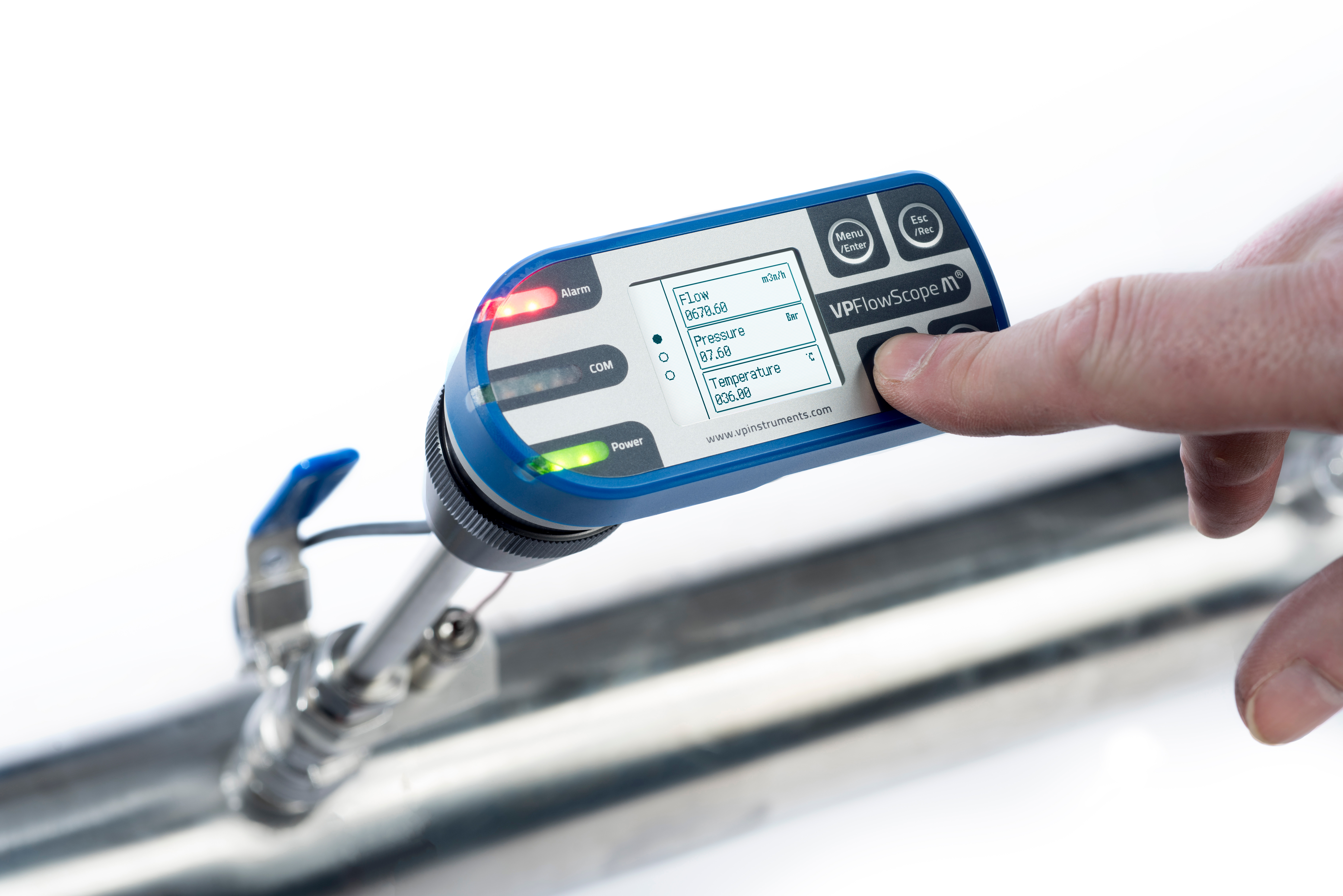

- TFT color display with alarm and status LEDs (optional)
- 1-year circular data logger, 1-second logging interval (optional)
- Rotating head — display readable from any angle
- Seamless integration with VPVision energy monitoring platform
- Free VPStudio software — configuration, real-time readout, CSV/XLSX export
- Ultra compact and lightweight
- 1 Year Warranty
Technical Specifications
Parameter |
Specification |
FLOW SENSOR |
|
Measuring Principle |
Thermabridge™ Thermal Mass Flow Sensor |
Flow Range |
0 (0.5) – 150 mn/sec / 0 – 500 sfps |
Bi-directional Flow |
Optional — see order codes |
Accuracy |
2% of reading under calibration conditions |
Recommended Pipe |
P220: 1"–2.5" / P350: 1"–20" |
Reference Conditions |
0°C, 1013.25 mbar / 32°F, 14.65 psi |
Gases |
Compressed air, nitrogen and inert non-condensing gases |
Gas Temperature Range |
0 – 60°C / 0 – 140°F |
PRESSURE SENSOR |
|
Range |
P350: 0–10 bar / 0–145 psi — P220: 0–16 bar / 0–250 psi |
Accuracy |
±1% FSS (total error band), temperature compensated |
TEMPERATURE SENSOR |
|
Range |
0 – 60°C / 32 – 140°F |
Accuracy |
>10 m/sec: ±1°C / ±1.8°F — <10 m/sec: +5°C / +9°F |
MECHANICAL — CARTRIDGE |
|
Probe Lengths |
P350: 340mm / 13.4" — P220: 220mm / 8.7" |
Weight |
P350: 200g / 7.05 oz — P220: 246g / 8.68 oz (incl. safety system) |
Process Connection |
P350: Compression fitting, ½" NPT tapered — P220: O-ring sealed fitting, NBR |
Pressure Rating |
P350: PN10 — P220: PN16 |
IP Rating |
IP65 / NEMA 4 when mated to transmitter |
Ambient Temperature |
0 – 60°C / 32 – 140°F |
Wetted Materials |
Anodized aluminum, SS316, glass, epoxy |
Ball Valve Note |
P220 installation requires full bore DN15 ball valve (min. ID 15.0mm / 0.60") |
TECHNICAL SPECIFICATIONS — Transmitter
Parameter |
Specification |
Display |
1.8" TFT, auto power save (D010 and D011 models) |
LED Status |
Power, communication, and alarm indicators on all models |
Data Logger |
1-year circular memory, 1x/second all parameters (D011 only) |
Outputs |
RS485 Modbus RTU, Ethernet Modbus/TCP, 4–20mA/Pulse/Alarm, Mini USB |
Dimensions |
50 × 108 × 36 mm / 1.97 × 4.25 × 1.42" |
Weight |
220g / 7.76 oz including locking ring |
Housing |
Anodized aluminum body, polycarbonate cover, NBR O-ring seals |
IP Rating |
IP65 / NEMA 4 when mated to VPSensorCartridge® with USB cap tightened |
Power Supply |
14–24 VDC ±10%, Class 2 (UL) |

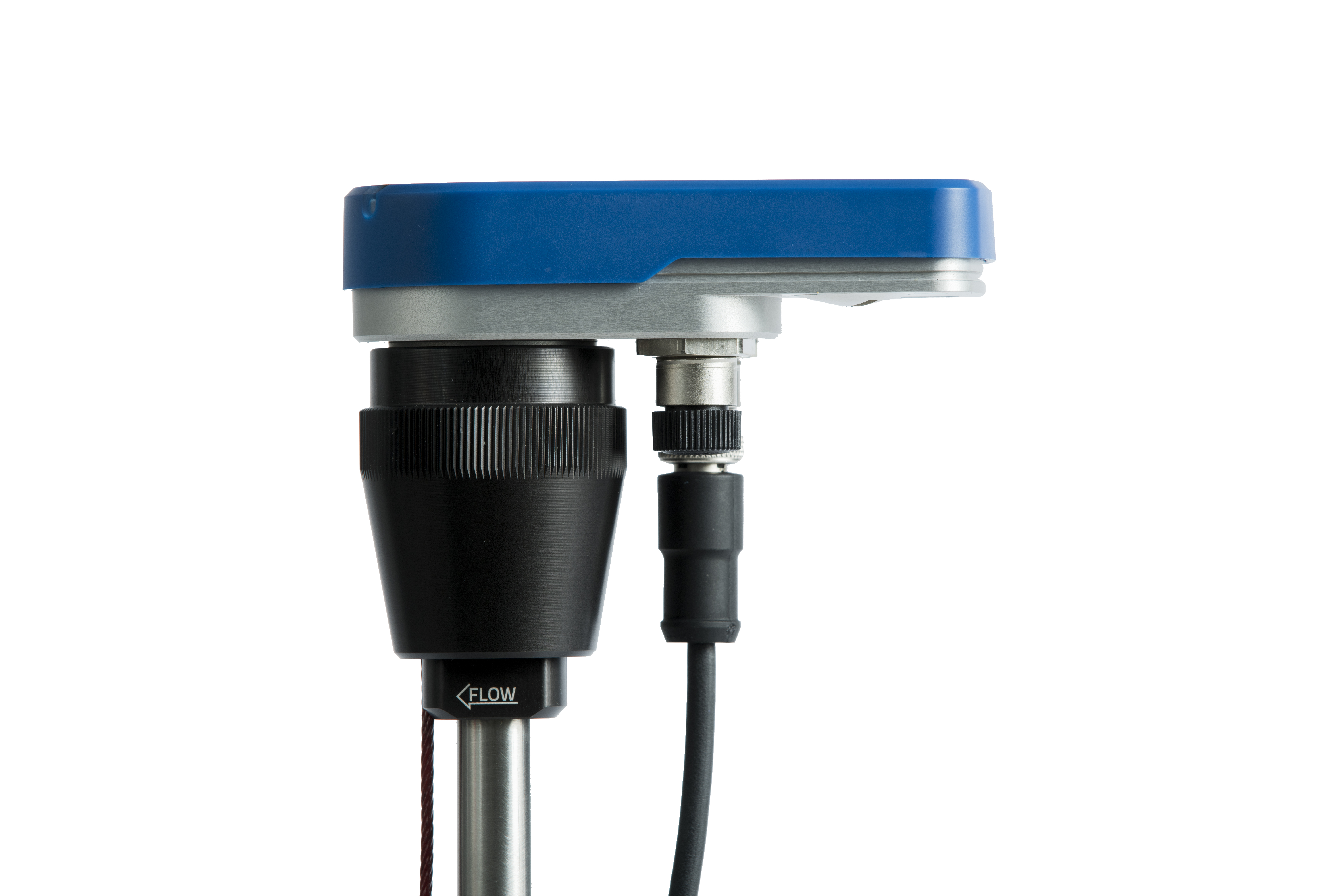

Power / RS485 Connection |
M12, 5-pin |
Ethernet Connection |
M12, 4-pin D-coded |
Power Consumption |
1W (no flow) / 3.5W (full flow) |
Certifications |
CE EN60950-1, EN61326-1, EN61000-3-2/3-3; UL 508 |
FLOW RANGE TABLE — Schedule 40 Standard Seamless Carbon Steel Pipe
Size (in) |
DN |
ID (in) |
ID (mm) |
Min (SCFM) |
Max (SCFM) |
Min (m³n/hr) |
Max (m³n/hr) |
1 |
25 |
1.0 |
26.6 |
1 |
177 |
1 |
301 |
1.25 |
32 |
1.4 |
34.5 |
1 |
298 |
2 |
506 |
1.5 |
40 |
1.6 |
40.9 |
1 |
417 |
2 |
709 |
2 |
50 |
2.1 |
52.5 |
2 |
688 |
4 |
1,169 |
2.5 |
65 |
2.5 |
62.7 |
3 |
982 |
6 |
1,668 |
3 |
80 |
3.1 |
77.9 |
5 |
1,516 |
9 |
2,576 |
4 |
100 |
4.0 |
102.3 |
9 |
2,610 |
15 |
4,435 |
6 |
150 |
6.1 |
154.1 |
20 |
5,924 |
34 |
10,065 |
8 |
200 |
8.0 |
202.7 |
34 |
10,259 |
58 |
17,429 |
10 |
250 |
10.2 |
259.1 |
56 |
16,756 |
95 |
28,468 |
12 |
300 |
11.9 |
303.2 |
77 |
22,953 |
130 |
38,995 |
16 |
400 |
15.0 |
381.0 |
121 |
36,237 |
205 |
61,565 |
Flow Range Table — Schedule 10 Standard Seamless Carbon Steel Pipe
ID (in) |
ID (mm) |
Min (SCFM) |
Max (SCFM) |
Min (m³n/hr) |
Max (m³n/hr) |
1.1 |
27.9 |
1 |
194 |
1 |
329 |
1.4 |
36.4 |
1 |
330 |
2 |
561 |
1.7 |
42.7 |
2 |
456 |
3 |
774 |
2.2 |
54.8 |
2 |
749 |
4 |
1,273 |
2.6 |
66.9 |
4 |
1,118 |
6 |
1,900 |
3.3 |
82.8 |
6 |
1,712 |
10 |
2,908 |
4.3 |
108.2 |
10 |
2,923 |
17 |
4,966 |
6.4 |
161.5 |
22 |
6,508 |
37 |
11,057 |
8.3 |
211.6 |
37 |
11,173 |
63 |
18,982 |
10.4 |
264.7 |
58 |
17,487 |
99 |
29,709 |
12.4 |
314.7 |
82 |
24,724 |
140 |
42,004 |
15.6 |
396.8 |
131 |
39,315 |
223 |
66,794 |
P220 cartridge recommended for 1"–2.5" pipe. P350 for larger diameters up to 20" (accuracy may vary at larger sizes). Ranges apply to compressed air and nitrogen only.
Ordering Information
Order Code |
Description |
VPM.T001.D011.KIT |
VPFlowScope M Auditor Start Kit — includes P351 bi-directional cartridge, D011 transmitter (display + datalogger), safety cable with compression fitting, mini USB cable, 12V power supply adapter, 5m Ethernet cable (M12 to RJ45), rugged explorer case, ISO calibration report, VPStudio software |
ORDER CODES — P350 Cartridge (350mm, 13.7"), PN10
Order Code |
Description |
VPM.R150.P351.D011 |
Bi-directional — display + datalogger transmitter |
VPM.R150.P351.D010 |
Bi-directional — display transmitter |
VPM.R150.P351.D000 |
Bi-directional — no display transmitter |
VPM.R150.P350.D011 |
Uni-directional — display + datalogger transmitter |
VPM.R150.P350.D010 |
Uni-directional — display transmitter |
VPM.R150.P350.D000 |
Uni-directional — no display transmitter |
ORDER CODES — P220 Cartridge (220mm, 8.7"), PN16
Order Code |
Description |
VPM.R150.P221.D011 |
Bi-directional — display + datalogger transmitter |
VPM.R150.P221.D010 |
Bi-directional — display transmitter |
VPM.R150.P221.D000 |
Bi-directional — no display transmitter |
VPM.R150.P220.D011 |
Uni-directional — display + datalogger transmitter |
VPM.R150.P220.D010 |
Uni-directional — display transmitter |
VPM.R150.P220.D000 |
Uni-directional — no display transmitter |
All models supplied with compression fitting with integrated safety cable, 5m cable for power/RS485/4–20mA, and mini USB cable.
ACCESSORIES & SPARE PARTS
Order Code |
Description |
VPM.T001.D011 |
Transmitter only — display + datalogger (no compression fitting) |
VPM.T001.D010 |
Transmitter only — display (no compression fitting) |
VPM.T001.D000 |
Transmitter only — no display (no compression fitting) |
VPM.R150.P351.PN10 |
Cartridge 350mm bi-directional, PN10 — incl. 10-point calibration certificate |
VPM.R150.P350.PN10 |
Cartridge 350mm uni-directional, PN10 — incl. 10-point calibration certificate |
VPM.R150.P221.PN16 |
Cartridge 220mm bi-directional, PN16 — incl. compression fitting, safety lock, 10-point calibration certificate |

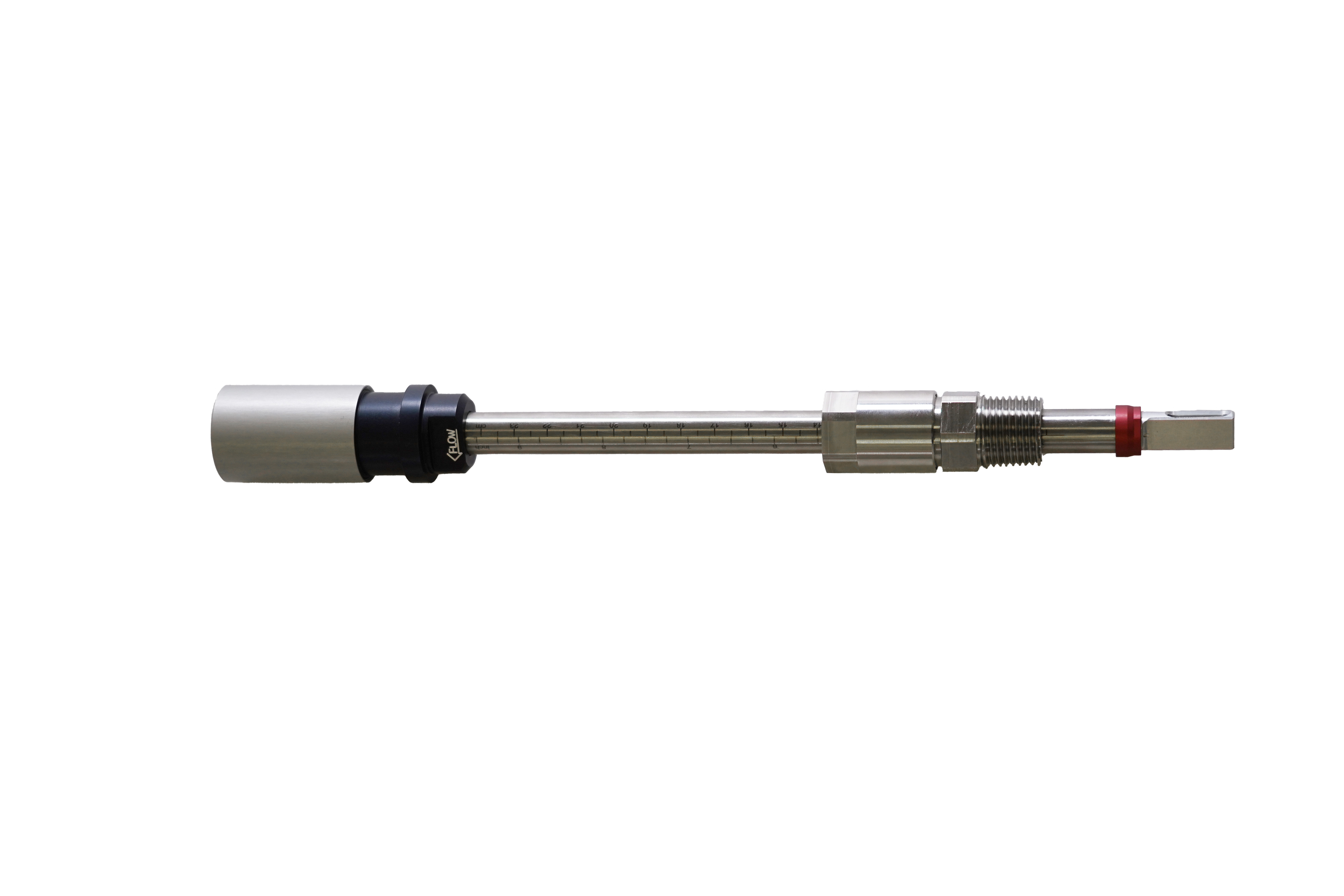

VPM.R150.P220.PN16 |
Cartridge 220mm uni-directional, PN16 — incl. compression fitting, safety lock, 10-point calibration certificate |
VPA.5000.005 |
Cable 5m / 16.4ft — M12 5-pin, open wires (power/RS485/analog) |
VPA.5000.010 |
Cable 10m / 32.9ft — M12 5-pin, open wires (power/RS485/analog) |
VPA.5004.0005 |
Ethernet cable 5m / 16.4ft — M12 4-pin to RJ45 |
VPA.0000.200 |
Power supply adapter — 90–240 VAC to 12VDC, M12 5-pin connector |
